Product Details:
|
| Model Number: | TK Gen2 Thermal Imaging Monocular | Magnification: | 1-8X |
|---|---|---|---|
| Effective Visual Distance: | 3000m | Detector Type: | 640*480@12μm |
| Focus: | 25mm/F1.1 | Digital Zoom: | 2x，4x |
| Battery Working Time: | 5 Hours | Frame: | 50Hz |
| High Light: | IR Pro Thermal Monoculars waterproof WiFi,Thermal Monoculars waterproof WiFi IR Pro,IR Pro High Definition Thermal Monoculars WiFi |
||

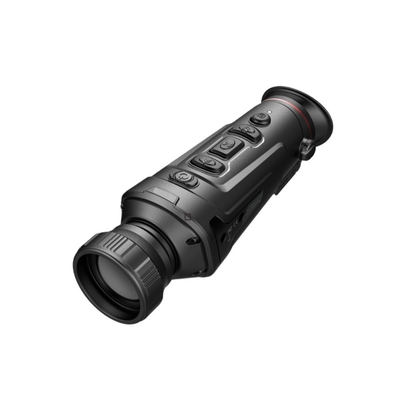

Track IR Pro Infrared Thermal Imaging Monocular With 640*480@12Um IR Detector
Parameter:
|
Model
|
TK421
|
TK431
|
TK451
|
TK611
|
TK621
|
TK631
|
|
IR Resolution
|
400×300@17μm
|
640×480@12μm
|
||||
|
NETD
|
≤50mk @ F1 25℃
|
|||||
|
Focal Length
|
25mm/F1.1
|
35mm/F1.2
|
50mm/F1.2
|
19mm F1.0
|
25mm F1.0
|
35mm F1.0
|
|
Focusing
|
Manual Focus
|
|||||
|
FOV
|
15.4°×11.6°
|
11.1°×8.3°
|
7.8°×5.8°
|
22.9°×17.2°
|
17.5°×13.1°
|
12.5°×9.4°
|
|
Output Frame Frequency
|
50Hz
|
|||||
|
Optical Zoom
|
1.7x
|
2.3x
|
3.3x
|
1.1x
|
1.5x
|
2.0x
|
|
Digital Zoom
|
1x—4x
|
1x—8x
|
||||
|
Battery Operating Time
|
Battery continuous working time ≥ 5 hours @ 25 ℃ (only observe the state)
|
Battery continuous working time ≥ 4.5 hours @ 25 ℃ (only observe the state)
|
||||
|
USB
|
Type C (USB 2.0 standard) interface, chargeable and data access
|
|||||
|
Video Interface
|
Micro HDMI
|
|||||
|
WIFI
|
Transmission of real-time video via WIFI for remote control, 2.4G frequency band, distance up to 15m
|
|||||
|
Internal Storage
|
16GB
|
|||||
|
Working temperature
|
-10℃~50℃
|
|||||
|
Certifications
|
IP66/FCC/CE/Rohs/EAC/un38.3
|
|||||
|
Weight
|
≤470g
|
≤485g
|
≤535g
|
≤490g
|
≤560g
|
|
|
Size
|
192*65*71mm
|
214*65*71mm
|
192*65*71mm
|
214*65*71mm
|
||
Features:
* New self-developed infrared metal detector with high sensitivity
* PureIR adaptive filtering algorithm for sharp images in complex environments
* Built-in laser indicator to locate the targets up to 200m
* 0.4-inch 1280x960 display for comfortable observation
Differential buttons for easy operation in total darkness
* The connected app via WiFi for remote control, live image and video transmission
* Designed to be operated under extreme environmental conditions with IP66 and 1 meter drop test
* >5 hours battery working time
* Mobile-friendly APP for Remote Control and Steaming
* User-friendly UI with quick menu, easy to operate
* Multiple Color Palettes for good vision in diverse conditions
* Support smooth zoom, built-in stadiametric rangefinder and more
* Can connect external mobile power supply and more
