Product Details:
|
| Type: | S750 Long Range Thermal Imaging Binoculars | Sensor: | 1/3"CCD, 795(H)×596(V) |
|---|---|---|---|
| Format: | BMP/AVI | Battery Working Time: | >5h |
| Storage Temp: | -40℃~60℃ | Humidity: | ≤90%(Non - Condensing) |
| Storage Type: | Capture/recording | Storage Card: | Internal Memory |
| High Light: | Military Night Vision Telescope RoHS,Military Long Range Thermal Imaging Binoculars,RoHS military telescope night vision |
||

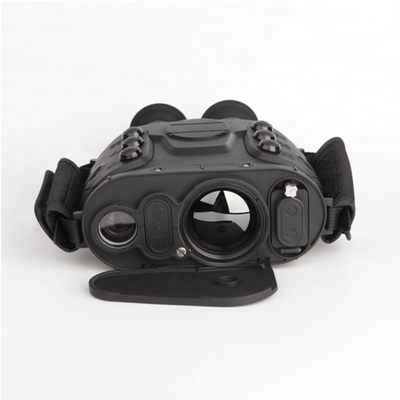

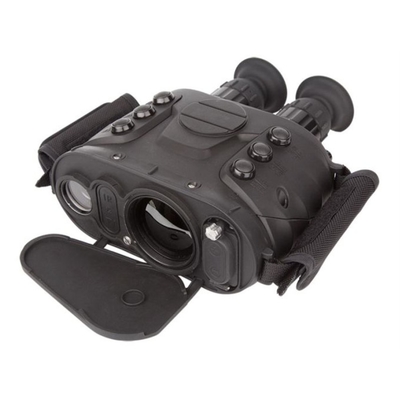

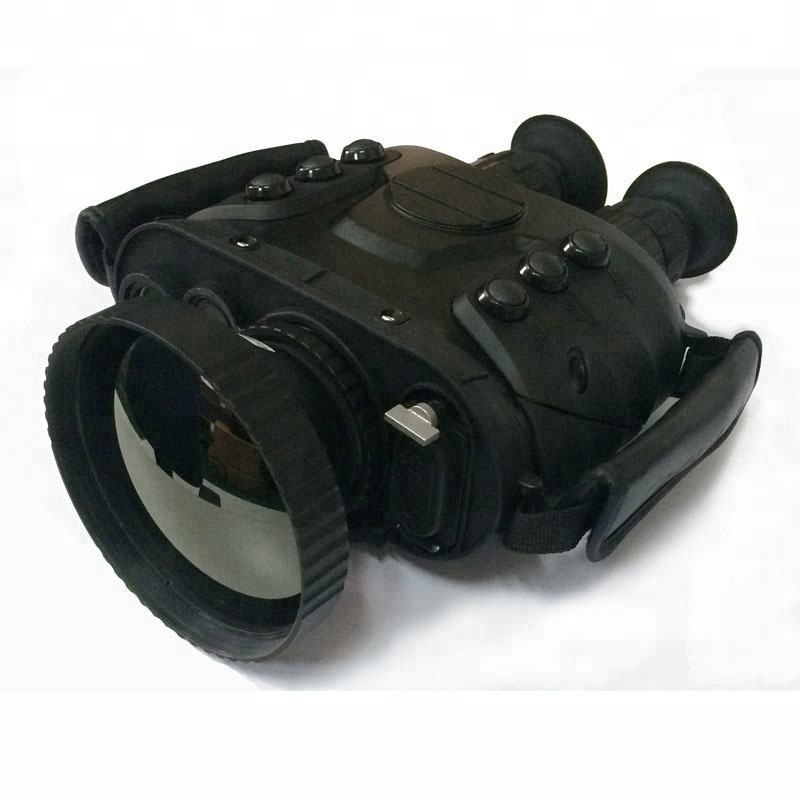

Military Night Vision Monitoring Infrared Long Range Thermal Imaging Binoculars
Parameter:
| Detector | Detector type | Uncooled FPA bolometer |
| Spectral range | 8 - 14 µm | |
| Resolution | 384×288 | |
| Frame rate | 50Hz | |
| FOV | 10.8°×8.3°/5.4°×4.1°(optional) | |
| NETD | ≤60mk@30℃ | |
| Focus | Auto/motor | |
| Display | Displayer | OLED binocular displayer, 800×600 |
| Polarity | White/Black-hot | |
| CCD | Sensor | 1/3"CCD, 795(H)×596(V) |
| FOV | 10.8°×8.3° | |
| Storage | Storage card | Internal memory |
| Storage type | Capture/recording | |
| Format | BMP/AVI | |
| Capacity | More than (10000 images or 8h video) | |
| Function | Brightness/Gain | Auto/manual |
| Polarity | White/Black-hot | |
| Electronic zoom | x 2,X3, x 4 | |
| Enhance | Yes | |
| Smoothing | Yes | |
| Power | Battery type | Li-ion, rechargeable |
| Battery working time | >5h | |
| Charger | Special charger | |
| Environment | Working temp | -30℃~50℃ |
| Storage temp | -40℃~60℃ | |
| Humidity | ≤90%(Non - Condensing) | |
| Protection Level | IP67 | |
| Physical characteristics | Weight | ≤1.4Kg |
| Housing color | Black(standard) | |
| Dimension | 210(L)mm×195(W)mm× 85(H)mm | |
| Interface | External power | yes |
| External video | PAL | |
| USB interface | yes | |
| Installation | 1/4"-20-UNC | |
| Detection distance | Human(1.7×0.5)m | 1650m/3300m(optional) |
| Vehicle(2.3×2.3)m | 2300m/4600m(optional) | |
| Recognition distance | Human(1.7×0.5)m | 550m/1100m(optional) |
| Vehicle(2.3×2.3)m | 760m/1520m(optional) |
Features:
• Multi-functional handheld 24/7 day&night surveillance thermal binoculars
• Fast auto-focus
• Binoculars OLED display
• Photo&Video record
• Electronics focus
Application:
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
