Product Details:
|
| Type: | TD210 Thermal Imaging Monocular | Size: | 143mmX45mmX73mm |
|---|---|---|---|
| Weight: | 360g | Magnification: | 1.8-3.6x |
| Operating Voltage: | <5mV | IR Resolution: | 256x192@12μm |
| Focal Length: | 10mm/F1.0 | FOV: | 17.5°x13.1° |
| Highlight: | long distance monocular ISO9001 TD210,ISO9001 infrared night vision monoculars,ISO9001 TD210 infrared night vision monocular |
||

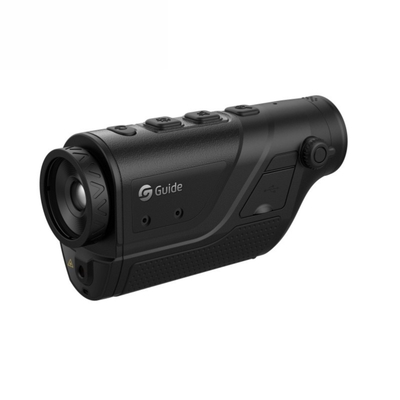

Outdoor TD210 Infrared Thermal Imaging Monocular Night Vision For Hunting
parameters:
|
Detector Type
|
256×192@12μm, VOx
|
|
Focal Length
|
10mm/F1.0
|
|
FOV
|
17.5°×13.1°
|
|
Focusing
|
Electric Focusing
|
|
Screen
|
Full-Color LCOS Screen,1280×960
|
|
Eyepiece
|
Exit pupil distance 17 mm, Adjustable diopter -4~＋2
|
|
Magnification
|
1.8X~3.6X
|
|
Frame Rate
|
25Hz
|
|
Picture-in-picture
|
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
|
|
Hotspot Tracking
|
√
|
|
WIFI/APP
|
Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission
|
|
Battery Type
|
Removable Standard 18650 Li-ion battery x1
|
|
Working Time
|
≥8h
|
|
USB/Video Output
|
TYPE C(USB 2.0 Standard)Interface for charging, data transmission and simulation video output
|
|
Laser Indicator
|
Yes, Distance within 200m
|
|
Operating Temperature
|
-10°C～50°C
|
|
Encapsulation
|
IP66,1-meter drop test
|
|
Certificate
|
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
|
|
Weight
|
360g
|
|
Dimensions
|
143mm×45mm×73mm
|
Tiny And Powerful
Lightweight body, which can be controlled by one hand, comfortable to hold, no burden to carry and explore
Simple and easy to use,Extremely flexible control
• Follow the design of traditional optical equipment. The appearance and operation are meet with the traditional user habits
• Simple operation and easy to use
Boot up in 2 Seconds
Open your thermal imaging horizon Immediately
The device has entered working mode by touching the power button,which is convenient for you to explore outdoors efficiently
Image Details Boost
Perception is everything
• High Sensitivity Self-Developed VOx Infrared Detector, Provide clearly and detailed thermal image
• 1280 x 960 High-resolution LCOS Display. Vivid Colors for a comfort observation
In total darknessIndicate the 200m target easily
Turn on the laser indicator to lock the target quickly, The indication range within 200m,And share the target location anytime with your partner
PIP mode
Highlight the Target
The PIP mode can zoom in on the target when you in the complex outdoor scenes, And highlight the details of the target
Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, iron red, blue heat.
• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.
Three visual experiences,
Easy to control even in Complicated scenes
Rich scene modes, Choose the suitable scene for different environments to find the target quickly
Share in real time by WIFI, Have Fun With Friends
• Connect APP Via WIFI, Check and Share the thermal Image in real time.
• Connect Bluetooth Controller to remote control in real time
8 Hours Super Long Operation Time
• No Worry about the battery time, Enjoy heartily.
• Standard 18650 Battery , Easy to Purchase.
IP66, 1-meter Drop test
With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed
