Product Details:
|
| Model: | KRY802X Thermal Imaging Monocular | Product Weight: | 541.2g |
|---|---|---|---|
| Product Size: | 187.3x68x68.2mm | Probe Type: | Uncooled Focal Plane |
| Resolution Ratio: | 384x288 Infrared Focal Plane | LCD Resolution: | 720X540 |
| Focus Length: | 19mm；25mm；35mm | Field Angle: | 19.5°x14.7°； 14.9°x11.2°； 10.7°x 8° |
| Highlight: | HD monocular with camera 720X540,720X540 HD monocular with camera,Infrared monocular handheld telescope |
||

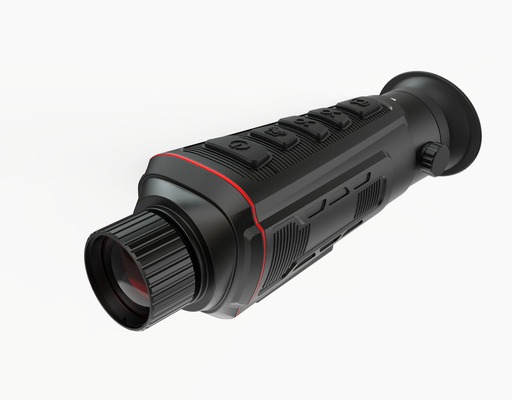

KRY802X Infrared Optical Sight Thermal Imaging Monocular Outdoor
Parameter:
|
Model
|
KRY802X-25,35
|
|
Product weight
|
541.2g
|
|
Product size
|
187.3x68x68.2mm
|
|
Probe type
|
Uncooled focal plane
|
|
Resolution ratio
|
384x288 infrared focal plane
|
|
LCD resolution
|
720X540
|
|
Focus length
|
19mm；25mm；35mm
|
|
Eyepiece
|
Single eyepiece display (the dioptric compensation is adjustable)
|
|
Field angle
|
19.5°x14.7°； 14.9°x11.2°； 10.7°x 8°
|
|
Digital zoom
|
2X；4X
|
|
Wavelength coverage
|
8μm-14μm
|
|
Frame rate of thermal images
|
50Hz
|
|
Color palette
|
Rainbow/Hot metal/white heat/black heat
|
|
Focusing mode
|
Adjustable
|
|
Image storage
|
BMP
|
|
Battery
|
Built-in rechargeable batteries
|
|
USB
|
Micro USB
|
|
Working time
|
≥6 hours
|
|
Work temperature
|
0℃- 45℃
|
|
Storage temperature
|
-20℃- 60℃
|
Features:
1.KRY802X makes outdoor thermal imaging more accessible than ever with the ability to see heat signatures in total darkness.
2.Pocket-sized and designed for single-handed use, FLIR Scout TK has a simple four-button design and intuitive interface.
3.With camera function,you can connect the USB to the computer to browse the photos taken, which is convenient for multiple people to observe at the same time, making it possible for more applications.
4.Used in wild animal observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personal security, etc.
