Long Range Thermal Imaging Scope Monocular Handheld IP66

Long Range Thermal Imaging Scope Monocular Handheld IP66
Long Range Thermal Imaging Scope Monocular Handheld IP66 Long Range Thermal Imaging Scope Monocular Handheld IP66 Long Range Thermal Imaging Scope Monocular Handheld IP66 Long Range Thermal Imaging Scope Monocular Handheld IP66

Large Image :  Long Range Thermal Imaging Scope Monocular Handheld IP66

Product Details:
Place of Origin: China
Brand Name: OEM, ODM
Certification: CE,FC,RoHS
Model Number: S1

Long Range Thermal Imaging Scope Monocular Handheld IP66

Description
Model Number: S1 Thermal Imaging Scopes Resolution: 240×180
FOV: 23.4°×17.5° Focal Length: 10mm
NETD: 60mk@30℃ Spectral Range: 8-14μm
Weight: <0.5Kg Digital Zoom: 1x,2x,3x,4x,5x,6x,7x,8x
Highlight:

Long Range Thermal Imaging Scope Monocular

,

IP66 Thermal Imaging Scope Monocular

,

Scope Monocular Handheld

Hunting Thermal Imaging Scope Monocular Handheld Long Range

Parameter:



Item S1
Detector Type Uncooled FPA
Resolution 240×180
Image FOV 23.4°×17.5°
Focal Length 10mm
NETD 60mk@30℃
Focus Fixed
Digital zoom 1x,2x,3x,4x,5x,6x,7x,8x
Spectral range 8-14μm
Crosshair Yes
Palette Black hot / white hot / iron hot / red hot / amber etc..
Start time ≤5s
Display Screen 1.3 inch square (240*240) LCD screen
Power supply Type CR123 AA Battery
Working time 6 hours continuous
Environmental parameters Working Temp -10℃- +50℃
Storage Temp -30℃- +60℃
IP ratings IP66
Physical parameters Weight <0.5Kg

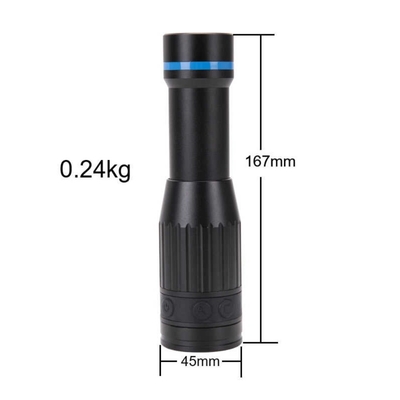

Dimension ≈Φ45×167mm
Detection distance Human 320m
Vehicle 450m
Recognition distance Human 160m
Vehicle 220m



Features:



1,Small size, one hand operation



2,Shutter less technology



3,Standard CR123AA battery for continuous 10 working hours.



4,Multiple color palette



5,Built-in moveable crosshair in display



6,4x Digital zoom



Long Range Thermal Imaging Scope Monocular Handheld IP66 0

Long Range Thermal Imaging Scope Monocular Handheld IP66 1

Long Range Thermal Imaging Scope Monocular Handheld IP66 2

Long Range Thermal Imaging Scope Monocular Handheld IP66 3

Long Range Thermal Imaging Scope Monocular Handheld IP66 4

Long Range Thermal Imaging Scope Monocular Handheld IP66 5
