Product Details:
|
| Model Number: | A6 Thermal Imaging Scopes | NETD: | ≤50mk |
|---|---|---|---|
| Resolution: | 256*192 | FOV: | 9.2*6.9 |
| Resolution, Pix: | 1280*960 | Objective Iens: | 19mm |
| Magnification: | 2.3-4.6x | Weight: | 380g |
| High Light: | 256*192 IR Resolution Rifle Scope,12um rifle scope Thermal,rifle scope Thermal 50mk |
||

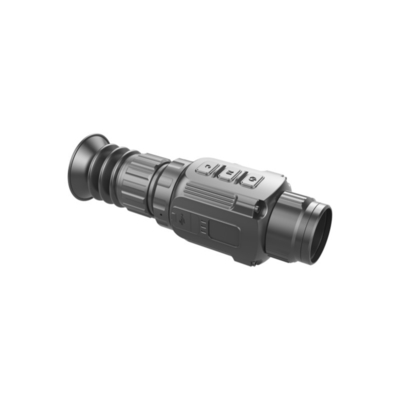

Thermal Imaging Scopes With 256*192 IR Resolution And Focal Length Rifle Scope
Parameter:
| Item Number | A6 | A10 | A7 | A9 |
| Resolution, pix | 256*192 | 384*288 | 384*288 | 384*288 |
| Pixei size,μm | 12 | 12 | 17 | 17 |
| NETD,mk | ≤50 | ≤50 | ≤50 | ≤50 |
| Objective Iens,mm | 19 | 35 | 25 | 35 |
| FOV, ° | 9.2*6.9 | 7.595.7 | 14.9*11.2 | 10*7.8 |
| Display | LOCS | LOCS | LOCS | LOCS |
| Resolution, pix | 1280*960 | 1280*960 | 1280*960 | 1280*960 |
| Magnification,x | 2.3-4.6 | 2.8-11.4 | 1.4-5.6 | 2.0-8.0 |
| Diopter Adjustment | -5~+5 | -5~+5 | -5~+5 | -5~+5 |
| Battery | CR123*2 | CR123*2 | CR123*2 | CR123*2 |
| Reticle type | 4 | 8 | 4 | 4 |
| IP Protection | IPX66 | IPX66 | IPX66 | IPX66 |
| Operation time, h | 8 | 3.5 | 4 | 4 |
| WIFI,Photo | - | √ | - | - |
| Compass | - | √ | - | - |
| Msensor | √ | √ | - | - |
| Ranger | √ | √ | √ | √ |
| Weight,g | 380 | 410 | 410 | 420 |
| Dimension,mm | 186*61*61 | 195*61*61 | 180*60*60 | 195*60*60 |
| USB | Type-C | Type-C | Type-C | Type-C |
| Memory | - | 8 | - | - |
| Discover Distance,m | 980 | 1800 | 1050 | 1500 |
Features:
1.LONGOT A6/A10/A7/A9 is an economical civilian infrared thermal imaging sight lens.
With different metal-encapsulated heat detectors, it can detect longer distances and capture clearer vivid images.
2.Light weight,Compact size,Powerful functions
3.Rugged with high Shock Resistance
4. 12um thermal imaging sensor, Ultra clear image quality
5.Mobile with Wifi connection for remote control
