Product Details:
|
| Model Number: | S25X Thermal Imaging Monocular | Size: | 200*71*71mm |
|---|---|---|---|
| Weight: | 0.45kg | Type: | Thermal Imaging Monocular |
| Magnification: | 2X,3X,4X | Effective Visual Distance: | 1500M |
| Operating Voltage: | Li-Ion Battery | Focal Length: | 25mm/35mm/50mm |
| Highlight: | S25X Thermal Imaging Monocular Camera,Thermal Imaging Monocular 640x480,IP66 Thermal Imaging Monocular Camera |
||

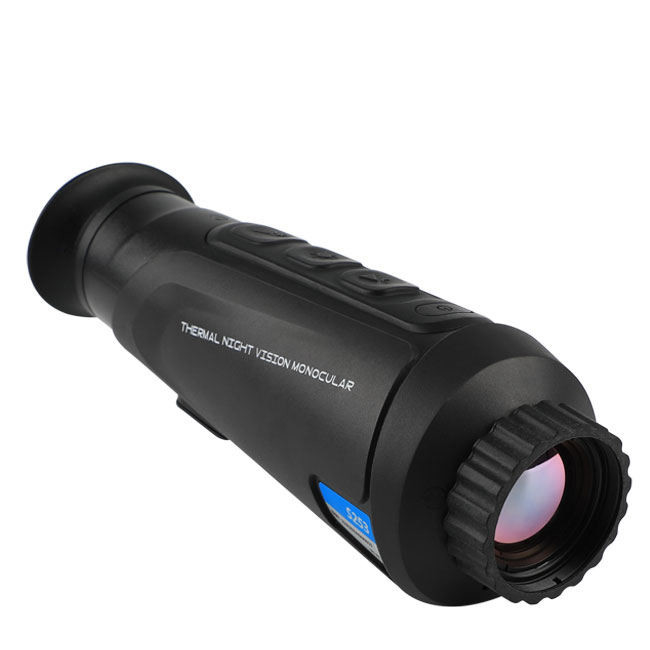

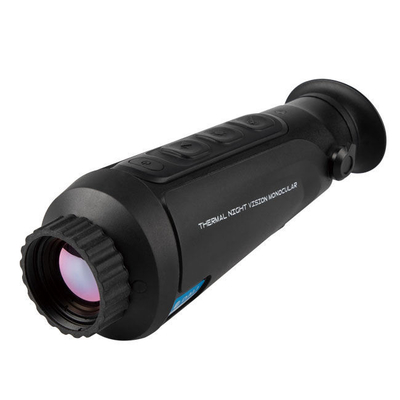

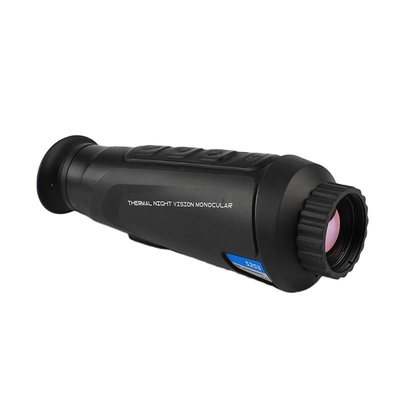

S25X II High Resolution Thermal Imaging Monocular Camera 640x480
Parameter:
| Item | S253 | S253H | S256 | |
| Detector type | Uncooled FPA | |||
| Resolution | 384×288 | 384x288 | 640×512 | |
| Image | FOV | 14°x 10.5° | 10.7°x 8° | 17.7º ×14.3º |
| Focal length | 25mm manual focus | 35mm manual focus | 35mm manual focus | |
| Focus range | 1m~∞ | 1m~∞ | 1m~∞ | |
| NETD | <40mk@30℃ | |||
| Frame rate | 50HZ | |||
| Focus | Manual focus lens | |||
| Digital zoom | 1x~4x | |||
| Picture-in-Picture | Yes | |||
| Distance estimate | Yes | |||
| Spectrum range | 8-14μm | |||
| Image transmission | WiFi image transmission, support real-time browsing, photograph, video recording functions etc via mobile APP. | |||
| Cross cursor | Yes | |||
| Hot spot tracking | Yes | |||
| Laser indication, LED light | Yes | |||
| Image display | Display | 1280*960 (Eyepiece adjustable) | ||
| Image polarity | Black-hot, White-hot, Red-hot, Iron, Forest mode | |||
| Diopter adjustment | Adjust by rotary knob | |||
| Power supply | Battery type | Li-Ion battery, Rechargeable | ||
| Operation time | 5 hours continuous | |||
| Charging | USB charging and power bank support | |||
| External power | DC5V/2A (Micro USB) | |||
| Environment | Working temp. | -20℃- +50℃ | ||
| Storage temp. | -40℃- +60℃ | |||
| Protection class | IP66 | |||
| Drop resistance | 1 M | |||
| Physical characteristics | Weight | <0.5kg | ||
| Dimension | 190*70*70mm | |||
| Interface | Power interface | Yes | ||
| Video output | PAL | |||
| USB | External charging | |||
| Detection distance | Human 1.7*0.5 | 800m | 1100m | 1100m |
| Vehicle 2.3*2.3 | 1100m | 1500m | 1500m | |
| Recognition distance | Human 1.7*0.5 | 400m | 550m | 550m |
| Vehicle 2.3*2.3 | 550m | 750m | 750m | |
Features:
1. Small volume, can be used with one hand
2. HD 1280*960 large size display screen, more clear display and observation
3. With WiFi, support image transmission function, real-time browsing, recording,
4. photograph, playback and control etc via mobile APP
5. IP66 rate, one meter drop resistance
6. Support hot spot tracking, picture-in-picture, cross cursor, various color palletes,
7. distance estimate function etc.
