Product Details:
|
| Model Number: | IR521 Military Thermal Binoculars | Resolution: | 1920×1080 |
|---|---|---|---|
| FOV: | 11.1°×8.3°(±5%) | Focus: | 70mm |
| Encapsulation: | IP67 | Type: | BINOCULAR |
| Digital Zoom: | 2x | Working Time: | ≥5h(do Not Change Battery) |
| High Light: | IP67 army night vision binoculars,Infrared army night vision binoculars,Infrared thermal camera binoculars |
||

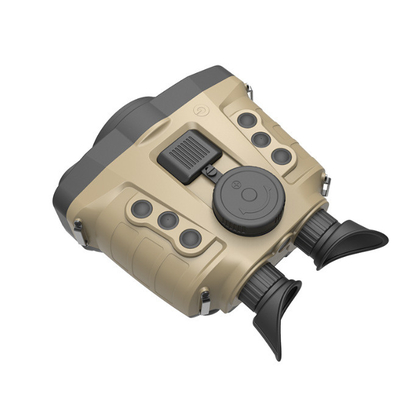

HD Infrared Military Thermal Binoculars Camera And VIdeo Camera
Parameter:
| IR521 | |||
| Infrared Thermal Imaging Camera | |||
| Detector Resolution | 800×600,17μm,VOx | ||
| Spectral Range | 8μm~14μm | ||
| Focus | 70mm | ||
| FOV | 11.1°×8.3°(±5%) | ||
| Visible Camera | |||
| Focus | 4.9°×3.9°(±5%) | ||
| Resolution | 1920×1080 | ||
| Working Range | 1.8m×0.5m Human | 2.3m×2.3m Vehicle | |
| Detection Range | IR>2.0km,Visible light>3.8km | IR >3.5km,Visible light >5.5km | |
| Recognition Range | IR >1.0km,Visible light >1.8km | IR >1.8km,Visible light >2.5km | |
| Function | |||
| Position Accuracy | ≤10m(GPS,Plough optional) | ||
| Orientation Accuracy | ±0.5°(RMS) | ||
| Ranging | Eye-safe, 2.3m×2.3m typical target measurement ranging not less than 3km,maximum measuring range,for building 6km | ||
| Range Accuracy | ≤±5m | ||
| Wi-Fi | Transfer analog video with Wi-Fi | ||
| Image | |||
| Image Enhancement | Auto image filtering and sharp | ||
| Brightness/Contrast | Auto/Manual | ||
| Polarity | White-hot/black-hot,palette | ||
| Digital Zoom | 2X | ||
| Video Storage | Built-in 16G SD card,no less than 9000 compress pictures(JPG)and no less than 2h video(AVI) | ||
| View Finder | OLED 1280×1024, visual acuity | ||
| Interface | |||
| Electrical interface | power,video PAL(NTSC can customizable),communication Rs232,Wi-Fi,USB,built-in GPS(external connection) | ||
| Mechanical Interface | 1/4 inch standard interface | ||
| Power | |||
| Power Input | 12V power adapter or built-in Li-ion battery | ||
| Continuous Working Time By Battery | ≥5h(do not change battery) | ||
| Environment Parameters | |||
| Working Temperature | -40℃~+60℃(Except for display equipment) | ||
| Encapsulation | IP67 | ||
| Electromagnetic Compatibility | GJB 151A-97 | ||
| Physical Characteristics | |||
| Weight | (including battery):≤2.3kg | ||
| Size | ≤240mm×250mm×115mm | ||
| Attention:The working condition is : visibility, no less than 15km;humidity, no more than 80%;and the target with background temperature difference, no less than 4℃. | |||
Features:
· 800×600 high resolution uncooled detector can be combined with visible technology to search, identify the target
· Binocular display, can be contacted with external display device
· Built-in laser range finder, electrical compass and GPS, can have self localization and target location
· With the integrating function of taking photo, video and reviewing, which can be output by USB
· With external GPS, and two-way Wi-Fi function
· IR521 Multi-functional Uncooled Portable Thermal Binoculars
Application field: Search and Rescue Law enforcement Firefighting first response Maritime rescue
· IR521 integrates with uncooled thermal binoculars, visible camera, GPS,electronic compass, an eye-safe laser range finder. Can be used for target searching, locates the target’s position, and take a photo on earth, sea surface, in forest. It’s rugged and portable.
