Product Details:
|
| Model Number: | S750 Long Range Thermal Imaging Binoculars | NETD: | ≤60mk@30℃ |
|---|---|---|---|
| Spectral range: | 8μm～14μm | Resolution: | 384×288 |
| Frame Rate: | 50Hz | Digital Zoom: | X 2,X3, X 4 |
| Weight: | ≤1.4Kg | FOV: | 10.8°×8.3°/5.4°×4.1°(optional) |
| High Light: | x3 long range thermal binocular,x4 long range thermal binoculars,outdoor thermal binocular waterproof |
||

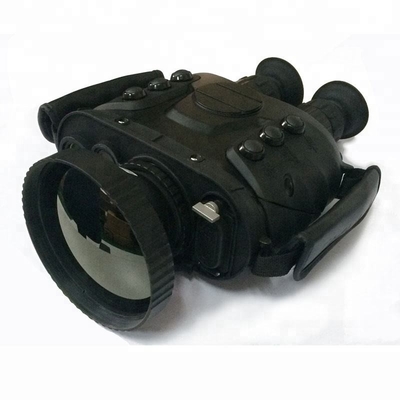

Security Monitoring Infrared Long Range Thermal Imaging Binoculars
Parameter:
|
Items
|
S750
|
S750-640
|
||
|
Detector performance
|
Detector type
|
Uncooled focal plane microthermal type
|
||
|
Wavelength coverage
|
8 - 14 µm
|
|||
|
Image resolution
|
384×288
|
640×480
|
||
|
Frame Rate
|
50Hz
|
|||
|
FOV
|
10.8°×8.3°/5.4°×4.1°
|
12.5°×9.4°/6.2°×4.7°
|
||
|
NETD
|
≤60mk@30℃
|
|||
|
Focusing way
|
Automatic or electric focusing
|
|||
|
Image display
|
Display device
|
HD OLED binocular display,800×600
|
||
|
Image polarity
|
White heat/black heat
|
|||
|
CCD
|
Imager
|
1/3 "CCD, pixel 795 (H) ×596 (V)
|
||
|
FOV
|
10.8°×8.3°
|
|||
|
Image storage
|
Storage Card
|
Internal memory
|
||
|
Storage mode
|
Taking photos/video
|
|||
|
File Format
|
BMP/AVI
|
|||
|
Memory capacity
|
> (10000 or 8 hours of video)
|
|||
|
Function
|
Brightness/Gain
|
Manual/Automatic
|
||
|
Polarity Inversion
|
Black heat/white heat
|
|||
|
Electronic variable times
|
x 2,X3, x 4
|
|||
|
Image enhancement
|
Include
|
|||
|
Image noise removal
|
Include
|
|||
|
Power System
|
Battery Type
|
Rechargeable lithium batteries
|
||
|
Battery continuous operating time
|
>5 hours
|
|||
|
Battery charge
|
Special charger
|
|||
|
Environmental suitability
|
Working temps
|
-30℃～50℃
|
||
|
Storage Temp
|
-40℃～60℃
|
|||
|
Environmental worthiness
|
Degree of wetness
|
≦90％(Non - Condensing)
|
||
|
Protection grade
|
IP67
|
|||
|
Physical property
|
Weight
|
≤1.4Kg
|
||
|
Shell Color
|
黑色(标配)
|
|||
|
Dimensions
|
210(L)mm×195(W)mm× 85(H)mm
|
|||
|
External Interface
|
External power source
|
Include
|
||
|
An external video
|
PAL
|
|||
|
USB interface
|
Include
|
|||
|
The installation interface
|
1/4"-20-UNC
|
|||
|
Detecting Distance
|
People (1.7×0.5)m
|
1650M (standard lens)/ 3300M (extension lens)
|
2400m (standard lens)/ 4800m(extension lens)
|
|
|
Vehicle (2.3×2.3)m
|
2300m(standard lens)/ 4600m(extension lens)
|
3300m(standard lens)/ 6700m(extension lens)
|
||
|
Identify the distance
|
People (1.7×0.5)m
|
550m(standard lens)/ 1100m(extension lens)
|
800m(standard lens)/ 1600m(扩展镜头)
|
|
|
Vehicle (2.3×2.3)m
|
760m(standard lens)/ 1520m(extension lens)
|
1100m(standard lens)/ 2200m(extension lens)
|
||
Features:
• Multi-functional handheld 24/7 day&night surveillance thermal binoculars
• Fast auto-focus
• Binoculars OLED display
• Photo&Video record
• Electronics focus
Application:
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
Introduction:
S750 Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.
