Product Details:
|
| Model Number: | S763 Thermal Binoculars For Hunting | NETD: | 50mk@30℃ |
|---|---|---|---|
| Spectral range: | 8~14um | Resolution: | 640x512 |
| Frame Rate: | 50HZ | Digital Zoom: | 4x |
| Weight: | 210 X 190x 85mm | Size: | 1.8Kg |
| Highlight: | OEM Military Long Range Binoculars,4x infrared heat sensor binoculars,S763 binoculars heat sensor |
||

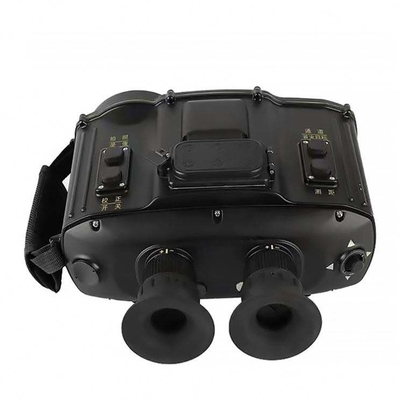

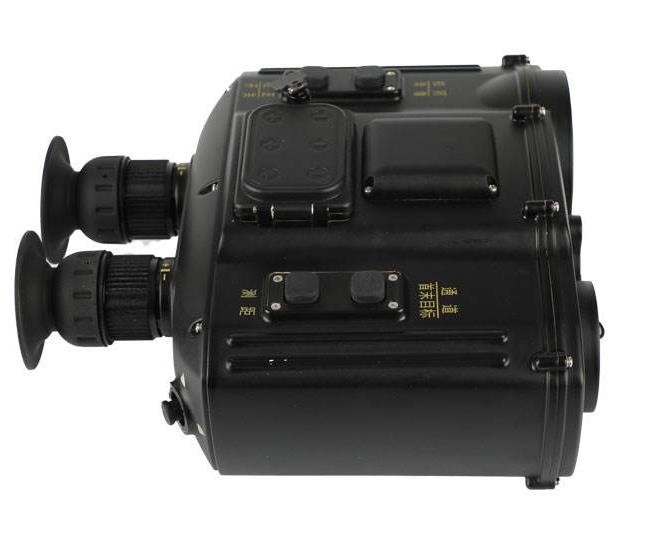

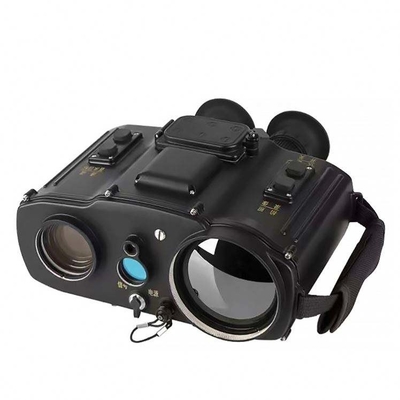

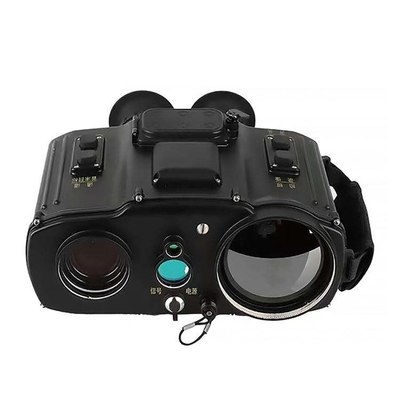

Military Long Range High Quality Infrared Thermal Binoculars For Hunting
Parameter:
| IR Thermal Detector Type | Uncooled FPA |
| Spectral Range | 8~14um |
| Detector Resolution | 640x512 |
| Lens | 73mm / F1.2 |
| FOV | 6°x4.2° |
| NETD | 50mk@30℃ |
| Frame rate | 50HZ |
| Focusing method | Electric focus |
| Digital Zoom | 4x |
| Sensor | 1/2.9″ CMOS |
| Pixel | 1920(H)×1080(V) |
| Field of view | 3°× 2.2°~12°× 8.8° continuous zoom lens |
| Focus | Auto or manual |
| Brightness/Gain | Auto/Manual |
| Electronic compass | Angle measurement accuracy Azimuth angle 0.5°, pitch angle 0.3° |
| Laser rangefinder | Measuring range 50m~5Km |
| Positioning system | Beidou/GPS |
| Target information positioning | ≤20m(CEP), observation distance 2Km |
| Display | HD OLED binocular display (1280*1024), 0.61 inch |
| Polarity | Black-hot, White-hot, Red-hot, Iron hot |
| Diopter adjustment | Yes |
| Video and photo playback | Local infrared and visible real-time recording and local playback |
| Battery type | 18650 universal battery |
| Operating Time | 6 Hours continuous |
| Battery charging | Special charger |
| External video | PAL |
| USB | Yes |
| Operation temperature | -30℃- +55℃ |
| Storage temperature | -40℃- +70℃ |
| IP ratings | IP67 |
| Weight | 1.8Kg |
| Size | 210mm x 190mm x 85mm |
| Used for | Night Vision,Searching,Scout |
| Detection Distance | Human 1.5km / Vehicle 4km |
Features:
• OLED high resolution (1280*1024 pixels), high performance display;
• IP67 protection grade, suitable for various environments;
• Built-in high-definition 1920×1080 resolution continuous zoom visible light camera, with fog-through mode, optical zoom, more convenient on-site forensics and video recording;
• Light weight and easy to operate.
• Using high-sensitivity infrared detection chip, 640*512 pixels, long-focus infrared lens, the recognition distance
of people>1.5km; the recognition distance of medium-sized vehicle s>4km
• Using high-definition 1920*1080 resolution continuous zoom visib le light camera, and with fog-through mode,
optical zoom, the recognition distance of people> 3km, the reco gnition distance of medium-sized vehicles> 5km
Application:
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
