Product Details:
|
| Type: | IR528 Long Range Thermal Imaging Binoculars | Size: | ≤210mm*170mm*100mm |
|---|---|---|---|
| Weight: | ≤1.5kg(including Battery) | Digital Zoom: | 2x |
| Viewfinder: | OLED 1280*1024, Visual Acuity | Focus: | 45mm |
| IR Resolution: | 800*600 | Measurement Range: | 3000m |
| High Light: | 3000m Long Range Thermal Imaging Binoculars,binoculars with night vision and heat sensor,3000m heat sensor night vision binoculars |
||

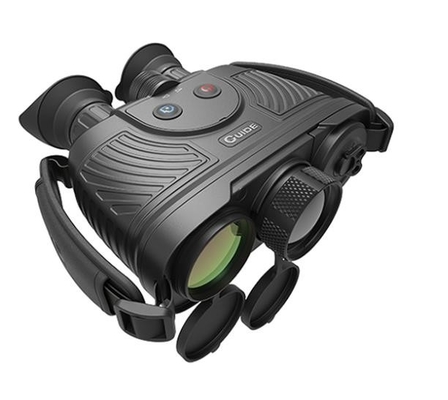

3000m Long Range Thermal Imaging Binoculars Night Vision With Heat Sensor
parameters:
|
Model
|
IR528
|
|
IR Detector
|
|
|
Detector Resolution
|
800×600,17μm,VOx
|
|
Spectral Range
|
8μm～14μm
|
|
FOV
|
16°×12°
|
|
low-light level camera
|
|
|
Resolution
|
Low illumination 800×600@18μm
|
|
FOV
|
16°×12°
|
|
Display
|
|
|
Display
|
1024×768 high resolution color OLED
|
|
Eyepiece
|
Binoculars
|
|
Storage
|
|
|
Storage Capacity
|
32GB
|
|
Storage Format
|
Image BMP,Video AVI
|
|
Power Supply
|
|
|
External Power Input
|
7-15V
|
|
Built-in Battery
|
18650 battery
|
|
Power Consumption
|
≤5.5W
|
|
Interface
|
|
|
Video Interface
|
PAL video output
|
|
Data Interface
|
USB
|
|
Environmental Characteristics
|
|
|
Operating Temperature
|
-40°C-+55°C
|
|
Storage Temperature
|
-55°C-+70°C
|
|
Vibration
|
5HZ～200HZ～5HZ(Sine sweep), 1.5g (peak acceleration)
|
|
Shock
|
Half-sine wave, pulse width 6ms, acceleration 20g
|
|
Weight & Dimensions
|
|
|
Encapsulation
|
IP67
|
|
Weight
|
≤1.2Kg
|
|
Package
|
|
|
Standard
|
Tandby battery, Battery charger, Shipment box,External cable, Power adapter
|
|
Optional
|
Tripod,Carrying bag
|
|
Range Mission
|
|
|
Low-light Camera
|
Recognition Range 350m
|
|
IR Camera
|
Recognition Range 900m
|
|
Fusion
|
Recognition Range 350m
|
Introduction
IR528 Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.
Main Features
• Two detectors for option, normal version 400*300 and high version 800*600
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device
Application:
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
