Product Details:
|
| Product Number: | MG-C600 Long Range Thermal Imaging Binoculars | Detector Type: | Amorphous Silicon Uncooled Infrared Focal Plane |
|---|---|---|---|
| Resolution: | 384x288 | Working Band: | 8-14um |
| Field Angle: | 7.5°x 5.6° | Frame Rate: | 50Hz |
| Size: | 193.1mmx176.8mmx99mm | Weight: | 1.93kg (including Batteries) |
| Highlight: | 3000M night vision digital binoculars,thermal imaging night vision binoculars 300m,thermal imaging night vision binoculars |
||

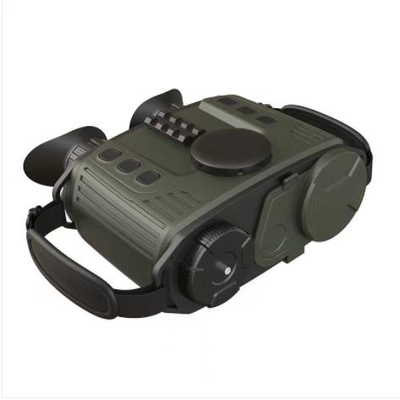

Military 3000 Meters Long Range Laser Ranging Thermal Imaging Binoculars
Parameter:
| Infrared | |
| Detector type | Amorphous silicon uncooled infrared focal plane |
| Resolution | 384x288 |
| Pixel size | 17um |
| Field angle | 7.5°x 5.6° |
| Working band | 8-14um |
| NETD | <50mk@25℃,@f/1.0 |
| Focal length | 50mm |
| Frame rate | ≤50Hz |
| Focus mode | Electric focus |
| Detection distance | |
| Characters (1.7mx0.5mx0.3m) | 3333m |
| Vehicles (4.5mx2.0mx1.5m) | 8823m |
| Identification distance | |
| Characters (1.7mx0.5mx0.3m) | 883m |
| Vehicles (4.5mx2.0mx1.5m) | 2205m |
| Shimmer | |
| Detector type | Ultra-low illumination CMOS |
| Resolution | 1920x1080 |
| Pixel size | 4.0um |
| Focal length | 35mm |
| Frame rate | ≤30Hz |
| Focus mode | Focus free |
| Display | |
| Display screen type | OLED |
| Resolution | 1024x768 |
| Display screen size | 0.39 inches |
| Display screen mode | Infrared/shimmer/dual light fusion/ picture in pictures |
| Electron doubling | 1x /2x /4x |
| Visual control | ±4SD |
| Color palette | Rainbow, iron red, cold color, white hot, and black hot |
| Other functions | |
| WIFI | 2.4G image transmission |
| Electronic compass | Square angle display |
| Positioning | GPS/BD |
| Storage | |
| Capacity | Built-in 8G eMMC (storage space available fort users at about 6.6G) |
| Shooting | Supported |
| Video recording | Supported |
| Picture/Video format | JPG/MP4 |
| Interface | |
| CVBS output | PAL system video output |
| USB interface | Export pictures and videos |
| External power supply | DC12/1A |
| Power supply | |
| Detachable rechargeable | 2200mAhx4 (battery model 18650) |
| lithium battery | |
| Battery charging mode | Standalone charging stand |
| Overall power consumption | ≤6W |
| Endurance duration | ≤6 hours |
| Operating/storage environment | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -30℃ to 70℃ |
| Shock | ≤30g |
| Protection level | 1P54 |
| Overall dimension/Weight | |
| Overall dimension | 193.1mmx176.8mmx99mm |
| Weight | 1.93kg (including batteries) |
The integrated technology such as ultra-low illumination COMS, infrared thermal imager, electronic compasses, GPS, video compression storage and control are used for the binocular fusion thermal imager, which can be used for tactical reconnaissance day and night, monitoring and identifying camouflage targets. It is characteristic of a small size, convenience in taking and good adaptation to environments. The thermal imager is easy to carry by a single person for front observation, and is also suitable for setting up a fixed observation station for observation, day and night observation, photographing and video recording of targets. It can be widely used in patrol, investigation, law enforcement, anti smuggling, anti drug, forest fire prevention, emergency search and rescue and other occasions.
Instruction to structure
In visual structures of the product, they mainly consist of CMOS, infrared thermal imaging, battery compartments, buttons, eyepieces, GPS modules and WIFI modules.
Display description
Standby connection mode: When the “Siginal ” icon is displayed, it means the device is connected to AP (hotspot) mode (the device defaults to AP mode); when the “ WIFI” icon is displayed, it means the device is connected to STA (station) mode; When the icon is flashing, Indicates that the mode is being switched.
Note: Mode switching needs to be operated on the APP.
Description of the Connecting Wires
For the data cord attached with the device, connect one end to the device’s aviation jack, with the other end to be plugged into the corresponding jack as required.
