Product Details:
|
| Type: | P4-0118 Night Vision Scope | Optical Zoom: | 1X |
|---|---|---|---|
| Digital Zoom: | 5X | Minimum Focal Length: | 0.3m |
| Infrared Illumination Wavelength: | 850nm | Display Lcd Resolution: | 750X560 |
| SD Card: | 8GB TF Card Support 4-32GB | Weight: | 170G |
| High Light: | P4-0118 Digital Night Vision Scope RoHS,RoHS 5X Night Vision Camera Scope P4-0118,digital night vision monocular RoHS P4-0118 |
||

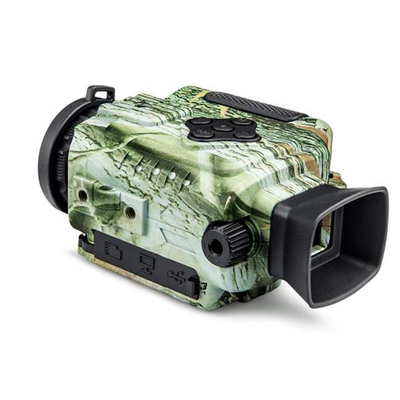

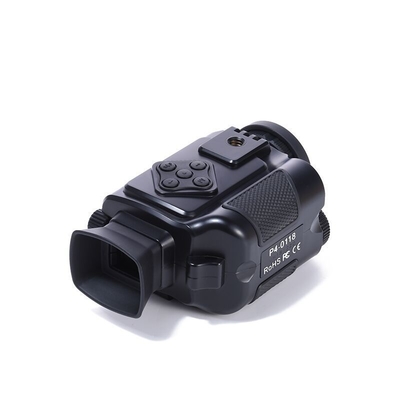

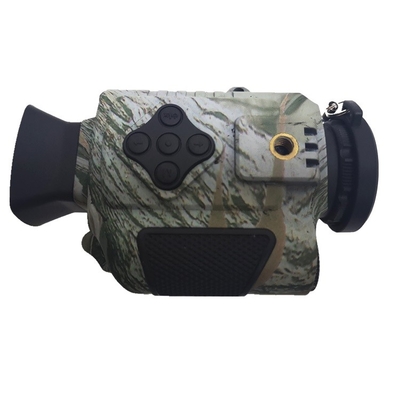

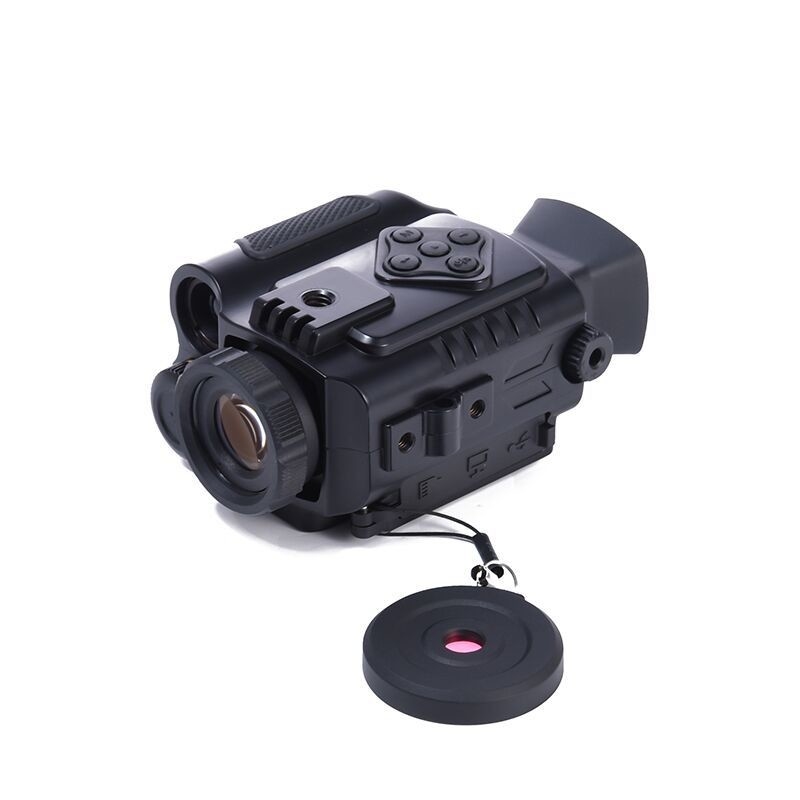

P4-0118 MIni IR Digital Video Camera Night Vision Scope Monocular
Parameter:
| Model | P4-0118 Digital Night Vision |
| Optical Zoom | 1X |
| Digital Zoom | 5X |
| Objective Lens Diameter | 18mm |
| Eyepiece | Made of rubber,unfoldable,rotating focusing |
| Field of View | 16.8º×20.2º |
| Diopter Arrange | ±5º |
| Focal Length Adjustment | Focusing by rotating objective lens unit |
| Minimum Focal Length | 0.3m |
| Eye Relief/ | 15mm |
| Lens Coating | Ultra wideband infrared anti- reflection film |
| Camera Type | CMOS |
| Camera Pixel | 300000 pixels |
| Infrared Illumination Wavelength | 850nm |
| Visible Distance in Dim Light | 2.0m~∞(naturall starlight) |
| Visible Distance in Total Darkness | 2.0m~200m external auxiliary infrared |
| Spectrum Range | 450-1100nm |
| Display Resolution/ | 750×560 |
| Operating Temprature | -20℃ - 45℃ |
| Operating Humidity | Max. 70% |
| Operating Voltage | 3.5V - 4.2V |
| Battery | 3.7V 750MAH (14500 CE) |
| Charging Sourse | 5V 2A/110-220v AC adapter |
| Battery Durability After Fully Charged | 2.5h(starlight)/1h(IR full on) |
| SD Card | 8GB TF card,supporting 4-32GB |
| Waterproof | IPX4 |
| Body Material | ABS+PC |
| Color Schemes | Black |
| Dimention(mm) | 102×76×49 mm |
| Weight | 170g |
| Soft Pouch Description | Black canvas with flap over secured by hook-and-loop fastener strips |
| Standard Accessories | outer package,soft pouch,AC adapter,battery,SD card,objective cap,hand strap,USB cable,AV cable,wipe cloth,instruction manual |
Features:
1.USB port for direct connection with a computer for data viewingor charging the rechargeable battery in the product
2.Video audio output jacks for connection with external PAL/NTSC display
3.Power supply: Use 14500 Large capacity rechargeable Lithium battery section.
4.Operating time: 2 ~3 h for daytime or 1 ~2 h for nighttime, depending on brightness of the IR lamp (maximum brightness for nighttime)
5.Photographing, video recording and playback in both daytime and nighttime, 1X optical zoom and 5X digital zoom
6.Nighttime: In low–light condition or Moonlight, can see object 200m away through the built-in infrared ("IR" for short) lamp; video recording,
photographing, sound recording; black-and-white images
