Product Details:
|
| Type: | IR516 Thermal Imaging Night Vision | IR Resolution: | 400*300 |
|---|---|---|---|
| Focus: | 45mm | FOV: | 16*12 |
| Viewfinder: | OLED 1280*1024, Visual Acuity | Weight: | ≤1.5kg(including Battery) |
| Size: | ≤210mm*170mm*100mm | Digital Zoom: | 2x |
| High Light: | 1280*1024 IR516A thermal imaging and night vision binoculars,1280*1024 CE thermal imaging and night vision binoculars,CE IR516B night vision binoculars |
||

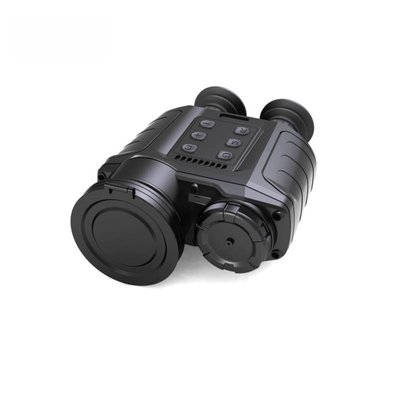

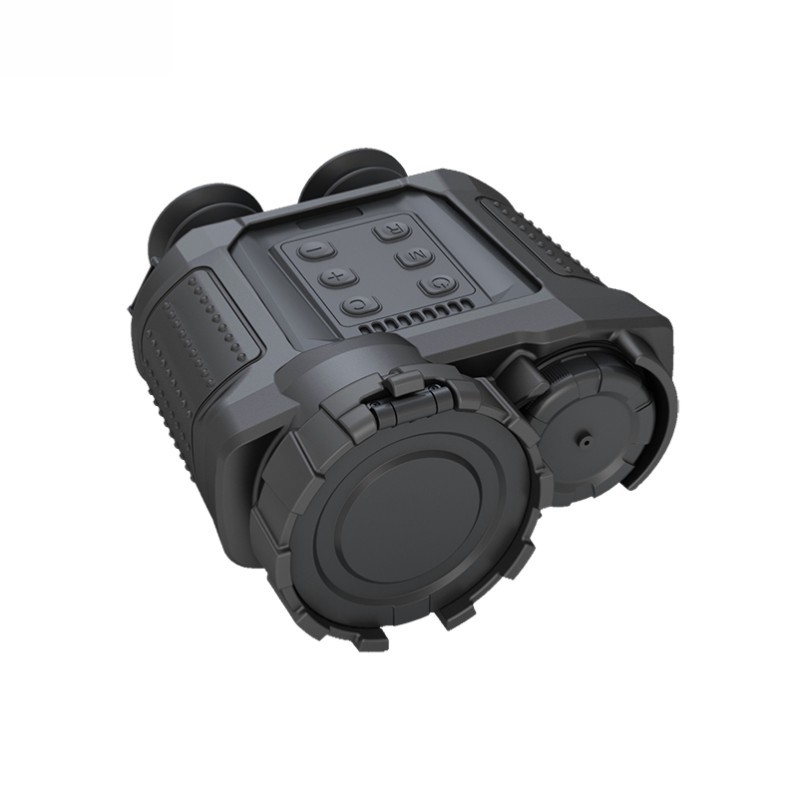

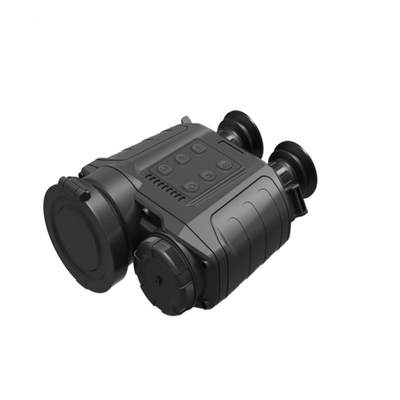

IR516A Military Thermal Imaging Binoculars And Night Vision With Long Range
Main Features
• Two detectors for option, normal version 400*300 and high version 800*600
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device
Product parameters
|
Model
|
IR516A
|
IR516B
|
|
Detector
|
||
|
Detector Resolution
|
400×300,17μm
|
800×600,17μm
|
|
Spectral Range
|
8μm～14μm
|
8μm～14μm
|
|
Lens
|
||
|
Focus
|
70mm
|
|
|
FOV
|
5.6°×4.2°(±5%)
|
11.1°×8.31°(±5%)
|
|
|
||
|
Image Enhancement
|
Auto image filtering and sharp
|
|
|
Brightness/Contrast
|
Auto/Manual
|
|
|
Polarity
|
White-hot/black-hot,palette
|
|
|
Digital Zoom
|
2×
|
|
|
Video Storage
|
Built-in 16GB SD card
|
|
|
View Finder
|
OLED 1280×1024, visual acuity
|
|
|
Power
|
||
|
Power Input
|
12V power adapter or built-in Li-ion battery
|
|
|
Working Time
|
≥4h(without changing battery)
|
|
|
Interface
|
||
|
Electrical Interface
|
power,video PAL(NTSC can customizable),communication RS232
|
|
|
Mechanical Interface
|
1/4 inch standard interface
|
|
|
Environment Parameters
|
||
|
Working Temperature
|
－40°C～60°C(Except for display equipment)
|
|
|
Encapsulation
|
IP67
|
|
|
Electromagnetic Compatibility
|
GJB151A-97
|
|
|
Physical Characteristics
|
||
|
Weight
|
≤1.5kg(including battery)
|
|
|
Size
|
≤210mm×170mm×100mm
|
|
|
Package
|
|
|
|
Standard
|
AL18650x4(rechargeable)battery,Charger,Power adapter,
External connection cable,Safety box,User Manual |
|
|
Optional
|
Tripod, Carrying bag
|
|
|
Detection Range
|
||
|
1.8m×0.5m Human
|
>1.6km
|
|
|
2.3m×2.3m Vehicle
|
>3.1km
|
|
|
Recognition Range
|
||
|
1.8m×0.5m Human
|
>0.85km
|
|
|
2.3m×2.3m Vehicle
|
>1.1km
|
|
