Product Details:
|
| Model Number: | HB6FM Thermal Imaging Binoculars | NETD: | ≤45mK@25℃ |
|---|---|---|---|
| Spectral range: | 8μm～14μm | Resolution: | 640x512 |
| Frame Rate: | 25Hz | Digital Zoom: | 2x |
| Weight: | ≤200×175×94mm | Size: | ≤1.60kg(including Four 18650 Lithium Batteries ) |
| High Light: | Thermal Imaging Binoculars Infrared,high Resolution Thermal Imaging Binoculars,thermal camera binoculars 640*512 |
||

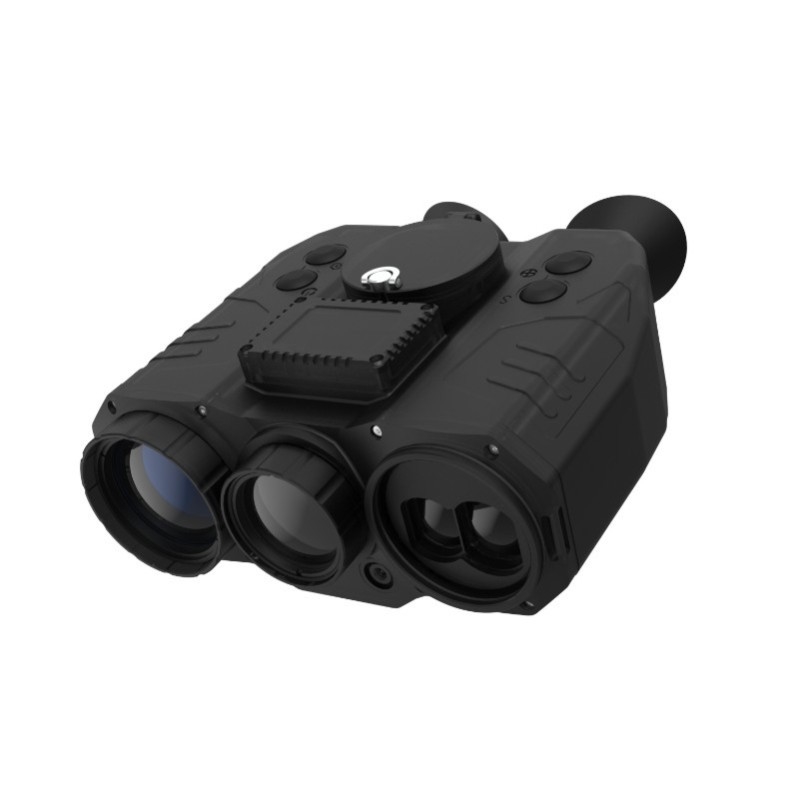

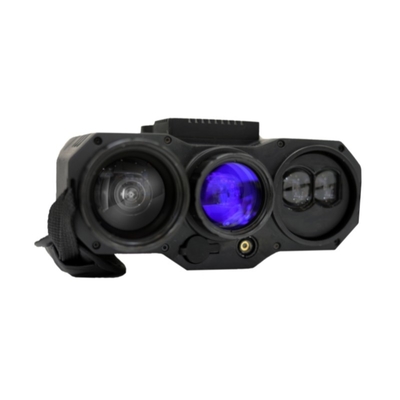

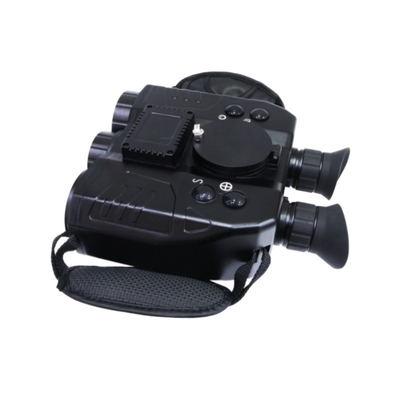

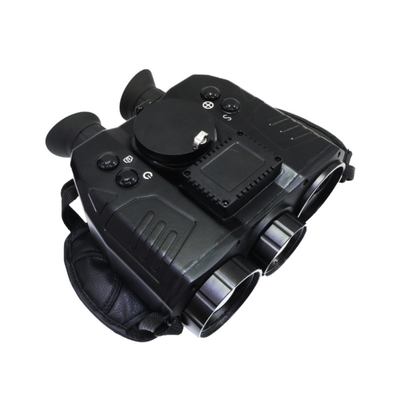

Military Infrared 640*512 Resolution Thermal Imaging Binoculars
Parameter:
| Detector and lens | |
| Resolution | 640×512 |
| Detector pitch | 17μm |
| NETD | ≤45mK@25℃ |
| Spectral Range | 8μm～14μm |
| Frame Frequency | 25Hz |
| Focal Length | 46.75 mm |
| Focus | Manual |
| Low-level-light(CCD)and lens | |
| Resolution | 800×600 |
| Detector pitch | 18μm |
| Frame Frequency | 25Hz |
| Focal Length | 49.5 mm |
| Focus | Manual |
| Image display | |
| Display | 0.39″OLED, 1024×768 |
| Digital zoom | 2x |
| Image adjustment | Auto＆Manual shutter correction;brightness;contrast;polarity;image magnification |
| Detection and identification range | |
| Detection range | Human 1.7m×0.5m:1550m |
| Vehicle2.3m:2100m | |
| Identification Range | Human 1.7m×0.5m: 500m |
| Vehicle2.3m:700m | |
| Storage of file | |
| Storage of image | BMP |
| Storage of video | AVI |
| Storage card | 32G TF |
| Interface | |
| Video out | Q9 |
| Digital interface | USB |
| Camera Control | RS232 |
| Tripod mounting | Standard,UNC ¼"-20 |
| Others | |
| Range of visual adjustment | -4°～+4° |
| Angle shows | Electronic compass |
| Positioning system | Beidou/GPS |
| Wireless transmission | WiFi |
| Laser Designator | Red laser 650 nm |
| Power supply | |
| Battery | Four 18650 chargeable lithium batteries |
| Starting up | Long press about 5s |
| Starting time | About 10s |
| Continuous operation time | ≥6h |
| Environmental data | |
| Working Temperature | -20℃～+50℃ |
| Storage Temperature | -45 ℃~+60℃ |
| IP Level | IP67 |
| Physical data | |
| Weight | ≤1.60kg(including four 18650 lithium batteries ) |
| Size | ≤200mm×175mm×94mm |
Features:
