Product Details:
|
| Model Number: | TS450 Thermal Imaging Scopes | Spectral: | 8μm～14μm |
|---|---|---|---|
| NETD: | ≤50mk | Focal Length: | 50mm F1.2 |
| FOV: | 7.5°×5.6° | Magnification: | 3.3~13.2× |
| Size: | 230*90*75mm | Weight: | ≤660g |
| High Light: | TS450 Thermal Imaging Monocular Scope,50mm Thermal Imaging Monocular Scope,400X300 Thermal Imaging Sight |
||

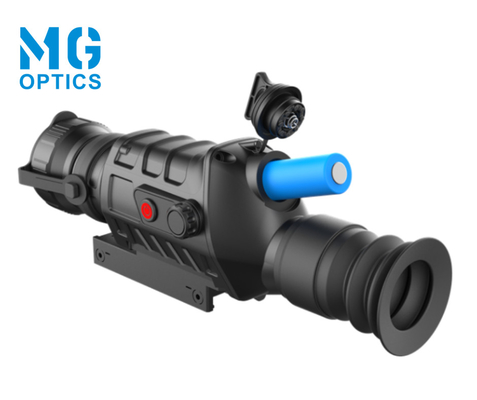

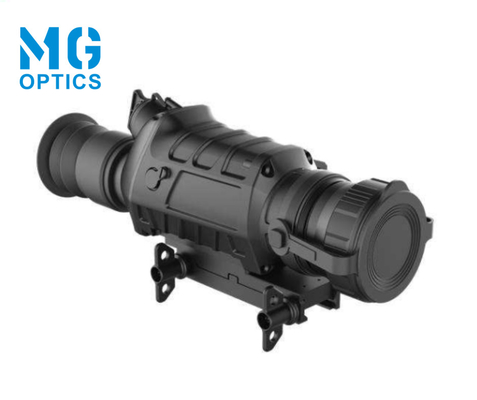

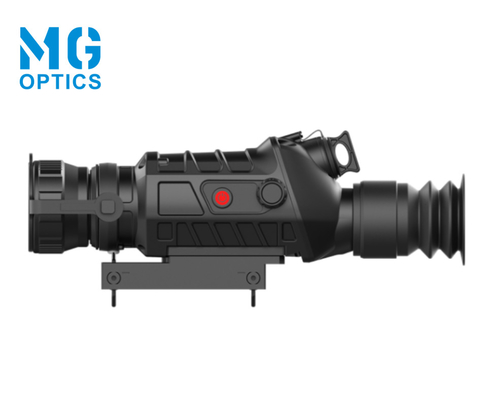

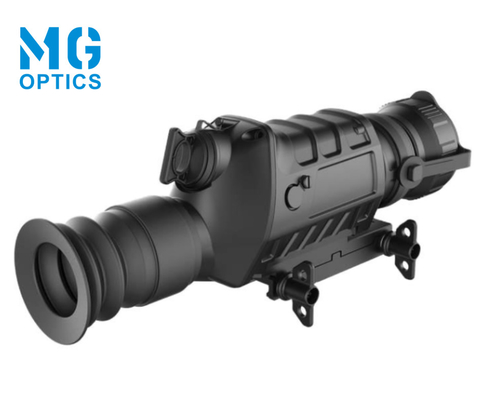

TS450 Thermal Imaging Scopes With 400*300 IR Resolution And 50mm Focal Length
Parameter:
| Model | TS425 | TS435 | TS450 |
| Detector | |||
| Detector Type | 400×300 @17μm, VOx | ||
| Spectral | 8μm～14μm | ||
| NETD | ≤50mk | ||
| Lens | |||
| Focal Length | 25mm F1.1 | 35mm F1.2 | 50mm F1.2 |
| Focusing | Manual Focus | ||
| FOV | 14.9°×11.2° | 10.7°×8.0° | 7.5°×5.6° |
| Display | |||
| Display | Color 0.39-inch OLED Display, 1024×768 | ||
| Eyepiece | Exit pupil distance 48mm, eyepiece magnification 14× | ||
| Magnification | 1.6~6.4× | 2.3~9.2× | 3.3~13.2× |
| Video Output System | PAL 50Hz | ||
| External Video Display | Full color video output by external interface, with menu | ||
| Imaging | |||
| Frame Rate | 50Hz | ||
| Digital Zoom | 2×,4× | ||
| Color Palettes | White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot | ||
| Picture-in-picture | On/off,the position is adjustable | ||
| Functions | |||
| hotspot tracking | Yes | ||
| Compensation Modes | Auto Compensation / Shutter Compensation / Scene Compensation | ||
| Calibration | 25m/50m/100m | ||
| Stadiametric rangefinder | 1.8m/0.5m/0.25m | ||
| Gun Types Selection | 6 Types | ||
| Power Supply | |||
| Battery Type | Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device | ||
| Battery Operating Time | ≥3H(Standard low temp battery,Observation status only) | ||
| ≥5H(Panasonic 3400mah standard 18650 battery,Observation status only) | |||
| Interface | |||
| Video Interface | Lemo | ||
| Environmental Characteristics | |||
| Operating Temperature | -40°C-50°C | ||
| Shock | 500G/1ms | ||
| Encapsulation | IP67 | ||
| Certificate | RoHS,CE | ||
| Weight & Dimensions | |||
| Weight(excl battery) | 660g | 660g | 720g |
| Dimensions | 230mm×90mm×75mm | 230mm×90mm×75mm | 250mm×90mm×75mm |
| Package Contents | |||
| Standard | Lens cap,battery,Charger,Video cable, | ||
| Pick-up gun rack,Hard transport case,User Manual | |||
| Detection Range | |||
| Human:1.8m×0.5m | 700m | 1000m | 1400m |
| Vehicle:2.3m×2.3m | 1700m | 2400m | 3000m |
| Recognition Range | |||
| Human:1.8m×0.5m | 350m | 500m | 700m |
| Vehicle:2.3m×2.3m | 700m | 1000m | 1400m |
Features:
1,With a 400x300 pixel TEC metal-encapsulated thermal detector, it can detect further distances and capture sharper, vivid images.
2,The TS thermal sight also has the characteristics of small size, waterproof and dustproof, strong shock resistance, strong and durable, and can perform well in any bad weather.
3,Image magnification at the center of the reticle to ensure aiming accuracy
4,The dense position of the reticle can be enlarged synchronously with the image, no need to convert and avoid errors
5,AMOLED display with 1024x768 resolution, rich colors and detailed pictures
6,The battery is foolproof design, can be loaded on both sides, no burden to replace the battery in the dark
7,Multi-user personalized settings, which can save multi-component scribing parameter information
