Product Details:
|
| Model Number: | TA450 Thermal Imaging Scopes | Spectral: | 8μm～14μm |
|---|---|---|---|
| NETD: | ≤50mk | Focal Length: | 50mm F1.2 |
| FOV: | 7.5°×5.6° | Digital Zoom: | 2×,4× |
| Size: | 178mm×58mm×62mm | Weight: | ≤450g |
| High Light: | TA450 Thermal Rifle Scope Monocular,TA450 clip on thermal scope attachment,thermal clip on scope 50mm F1.2 |
||

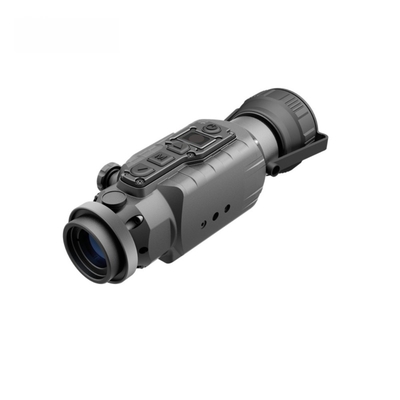

Thermal Imaging Scopes Monocular And Thermal Rifle Clip-On Thermal
Parameter:
| Model | TA435 | TA450 |
| Detector | ||
| Detector Type | 400×300 @17μm, VOx | |
| Spectral | 8μm～14μm | |
| NETD | ≤50mk | |
| Focus lens | ||
| Focal Length | 35mm F1.2 | 50mm F1.2 |
| Focusing | Manual focus | |
| FOV | 10.66°×8.0° | 7.5°×5.6° |
| Display system | ||
| OLED | Colorful 0.39 inch OLED screen 1024×768 | |
| Eyepiece | Monocular, Pupil Distance 10mm, Pupil Caliber 20mm | |
| Digital Zoom | 1 | |
| Image Processing | ||
| Frame Rate | 50Hz(PAL) | |
| Digital Zoom | 2×,4× | |
| Auto Tracking | Hotspot track | |
| Calibration | Automatic calibration/ Manual calibration (shutter) /Manual scene compensation | |
| Scenes Modes | Enhanced, Highlight, Natural | |
| Color Palettes | Black hot, white hot, red hot, green hot | |
| Contrast/Brightness | Adjustable | |
| Power Systems | ||
| Battery | CR123A×2/ICR16340×2 | |
| Power Supply | can be powered by 5V2A external power supply | |
| Interface | ||
| 7-Pin LEMO Interface | Support video output and external power supply | |
| Environment parameter | ||
| Operating Temperature | -30°C-50°C | |
| IP level | IP67 | |
| Certificate | RoHS Certificate/CE Certificate/FCC Certificate | |
| Physical Characteristics | ||
| Weight | ≤400g | ≤450g |
| Size | 150mm×52mm×57mm | 178mm×58mm×62mm |
| Package | ||
| Standard | Blinder, Carrying bag, Charger, User manual, 7-Pin Lemo to USB cable, Warranty | |
| Optional | External eyepiece, Adapter ring, CR123A×2(unrechargeable)battery, ICR16340×2(rechargeable)battery, | |
| Bluetooth remote controller, Picatinny rail, Charger, Video cable (two in one, power supply & video output | ||
| Detection Range | ||
| Human:1.8m×0.5m | 1000m | 1400m |
| Vehicle:2.3m×2.3m | 2400m | 3000m |
| Recognition Range | ||
| Human:1.8m×0.5m | 500m | 700m |
| Vehicle:2.3m×2.3m | 1000m | 1400m |
Features:
* Simple & Adaptable: Switchover among five scene modes by one button, truly realizing all-weather environment self-adaptation
* Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
* Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
* Compact and lightweight: ≤400g
* OLED color eyepiece display, capable of displaying images in various color modes
* Waterproof IP67
* Super sound-off and bright light Cut-off System, prevent exposure
* Optional Bluetooth remote controller for easy operation
* Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)
Application:
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
