Product Details:
|
| Type: | MH675 Military Thermal Binoculars | Detector: | Uncooled Microbolometer |
|---|---|---|---|
| Detector Resolution: | 640*480px@17μm | Spectral Range: | 8~14μm |
| Frame Rate: | 50Hz | Startup Time: | <5s |
| Protect Standard: | IP66 | Weight: | <1089g(Exculde Batteries) |
| High Light: | Military Thermal Binoculars Handed,IP66 infrared night binoculars Handed,IP66 infrared night vision binoculars Handed |
||

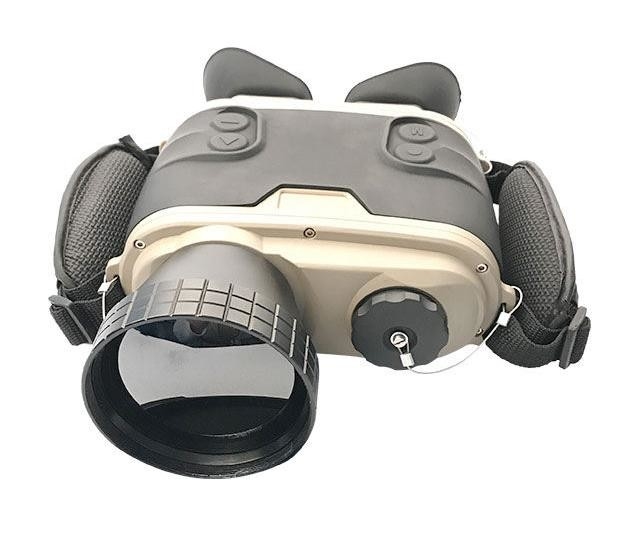

High Quality Handed Night Vision Infrared Military Thermal Binoculars
Parameter:
| Model | infrared thermal binocular |
| Thermal detector | |
| Detector | Uncooled microbolometer |
| Detector resolution | 640*480px@17μm |
| Spectral Range | 8~14μm |
| Frame rate | 50HZ |
| NETD | ≤60mk@300k(F1.0) |
| Lens system and Image processing | |
| Startup time | <5s |
| Focal length | 75mm |
| FOV | 8.3°×6.2° |
| Display | 800*600 OLED |
| Polarity | White hot/Black hot/ Pseudo-color(optional) |
| E-Zoom | ×2/×4 |
| Video format | MPEG4 |
| Record storage and Output | Record Format 640*480; Built-in 16G memory card |
| Video output | Analog:BNC Digital:USB2.0 |
| WIFI | YES |
| Interface | |
| Interface | Video output USB2.0 |
| Installation interface | 1/4' Standard Tripod Interface |
| Power supply | |
| Battery Type | 1*26650 Rechargeable Battery |
| Battery Life | Continuous working time after charging>6hrs |
| Power Consumption | <3.0W |
| Physical environment paremeters | |
| Operating Temp | -30℃~+60℃(OLED) |
| Storage Temp | -30℃~+70℃(OLED) |
| Protect Standard | IP66 |
| Humidity | 5%~95% |
| Weight | <1089g(Exculde batteries) |
| Dimensions | 220mm*170mm*85mm |
| Observation distance | |
| Man | Detection: 2000m |
| Recogniation: 700m | |
| Vehicle | Detection: 3500m |
| Recogniation: 1500m | |
Features:
*Long range detection
*High resolution display with LCOS screen
*Real-time display and high thermal sensitivity
*Video recording and picture capture
*IP66 encapsulution(IP67 optional)
*Portable and multi-purpose
