Product Details:
|
| Model: | KRM804X Thermal Imaging Scopes | Product Weight: | 400g |
|---|---|---|---|
| Product Size: | 120x73x66mm | Probe Type: | Uncooled Focal Plane |
| Resolution Ratio: | 384x288 IR Focal Plane | LCD Resolution: | 480X360 |
| Focus Length: | Optional 25mm/35mm/75mm Focal Length | Eyepiece: | Curve Correction Adjustable |
| High Light: | Infrared Thermal Imaging Scopes OEM,OEM Infrared Night Vision Scope,Outdoor portable monocular telescope |
||

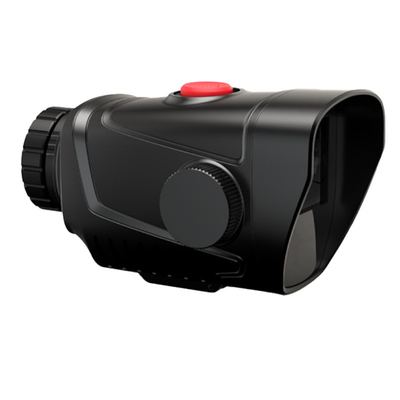

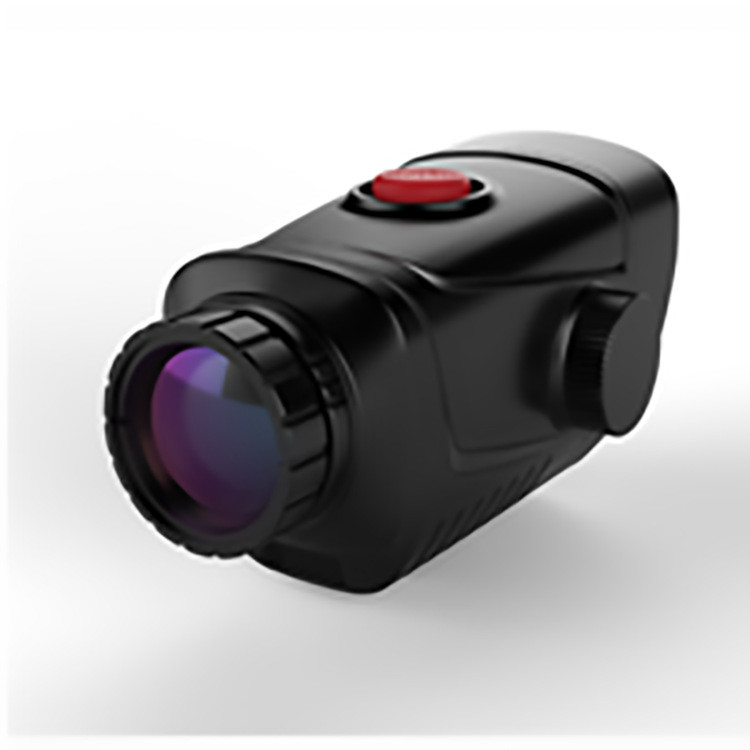

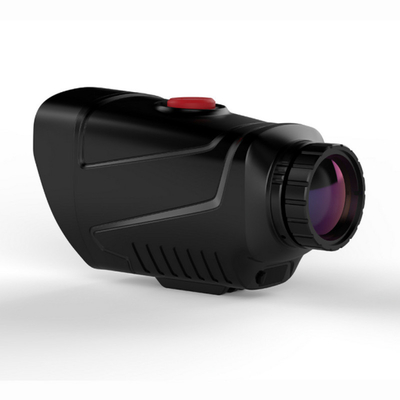

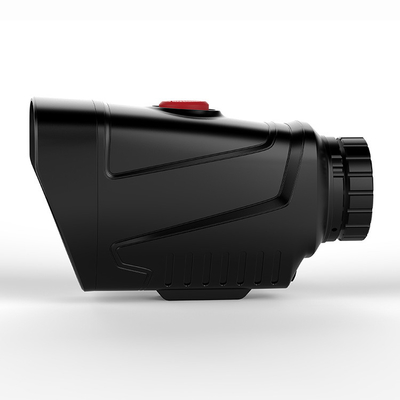

Outdoor Portable Monocular Infrared Thermal Imaging Scopes
Parameter:
| Detector type | Un-cooled focal plane |
| Resolution | 384x288 infrared focal plane |
| LCD resolution | 480x360 |
| Focal length | 25mm/35mm/75mm focal lengths optional |
| Eyepiece | Monocular display (refractive correction adjustable) |
| Field of view |
14.9°x 11.2° (corresponding to 25mm focal length) ; 10.7°x 8.0° (corresponding to 35mm focal length) ; 4.4°x 3.3° (corresponding to 75mm focal length) ; |
| Digital zoom | 2x; 4x |
| Wavelength range | 8um to 14um |
|
Thermal image frame rate |
50Hz |
| Color palette | Rainbow, hot metal, white hot and black hot |
| Focal length | Adjustable |
| Battery | Built-in chargeable battery |
| Storage space | 16G |
| Image type | BMP |
| USB | Type-C |
| Operating duration | 6 hours |
|
Automatic power off duration |
40 minutes |
| Weight | 400 grams |
| Product dimension | 120x73x66mm (25mmFocal length) |
| Protective level | IP66 |
|
Operating temperature |
0℃ to 45℃ |
|
Storage temperature |
-20℃ to 60℃ |
Product introduction:
KRM804X outdoor thermal imager, with advanced uncooled focal plane infrared detector and high quality optical lens as the core, combined with convenient and fast operating system, compact shape design, functional expansion spare parts, long battery life, durable, suitable for various environments. For the user to create a "clear imaging, simple operation, easy to carry" infrared thermal imaging tool.
This product is used in wild animal observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personal security, etc. This product has the function of taking photos, and can be connected to the computer by USB to browse the photos taken, which is convenient for many people to observe at the same time, creating possibilities for more applications.
