Product Details:
|
| Model Number: | RS325-384 Infrared Thermal Scope | Pixel Pitch: | 12μm |
|---|---|---|---|
| NETD: | ≤40mk | Focal Length: | 25mm |
| FOV: | 10.6°*7.9° | Frame Rate: | 50Hz |
| Highlight: | VOx Uncooled FPA thermal rifle scopes,IPX6 Monocular Rifle Scope,RS3 thermal rifle scope |
||

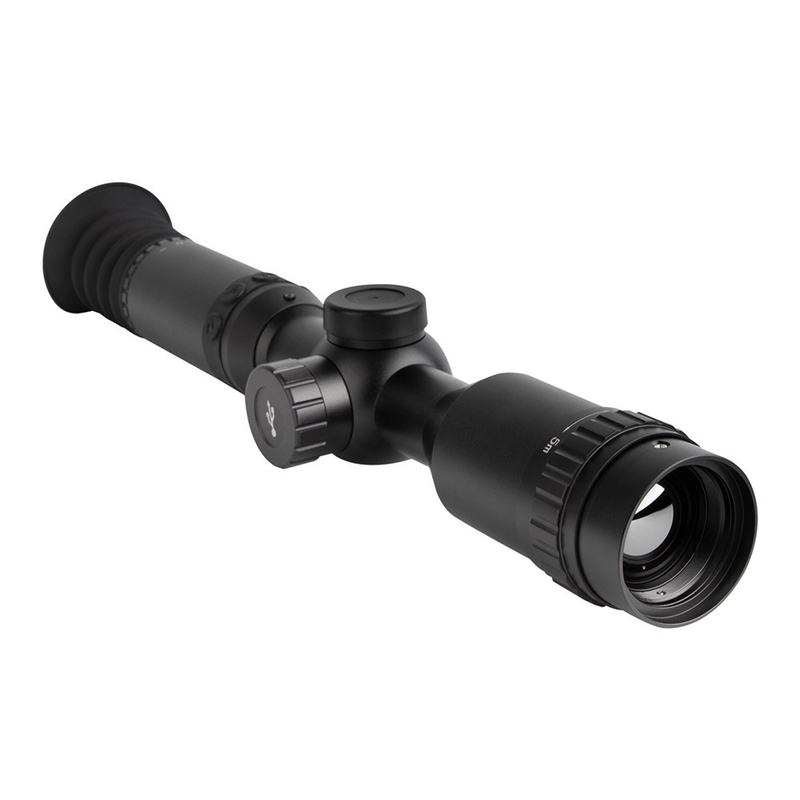

RS3 Black Hot Wifi Thermal Imaging Sight Monocular Rifle Scope For Hunting
Parameter:
| Item | RS325-384 | RS335-384 | RS350-384 |
| Detector type | VOx Uncooled FPA | ||
| Pixel | 384*288 | 384*288 | 384*288 |
| Pixel pitch | 12μm | ||
| NETD | ≤40mk | ||
| Focal length | 25mm | 35mm | 50mm |
| Field of view(±5%) | 10.6°*7.9° | 7.5°*5.7° | 5.3°*4.0° |
| Frame rate | 50Hz | ||
| Focus | Manual | ||
| Screen | Lcos 1280*960,Color lcos 1280*960 resolution | ||
| Out-pupil distance | 55mm | ||
| Eyepiece magnification | 10x | ||
| Base magnification | x2.3 | x3.25 | x4.65 |
| Visual degree | Adjustable | ||
| Brightness/contrast | Adjustable | ||
| Polarity reversal | Black hot/white hot | ||
| Electrnic zoom | x2,x3,x4 | ||
| Picture in Picture | Yes | ||
| Division | Yes | ||
| WIFI | Yes | ||
| Storage | 32G | ||
| Storage method | Video,take photos | ||
| Battery type | Built-in lIthum battery | ||
| Working hours | >5 hours | ||
| Impact resistance | 800G | ||
| Anti-vibration | 2g,GB/T2423.10(IEC60068-2-6) | ||
| Protection level | IPX6 | ||
| Electromagnetic compatibility | Meet CE requirements | ||
| Humidity | 0-95% | ||
| Working temperature | -20℃~+50℃ | ||
| Storage temperature | -40℃~+70℃ | ||
| Shell color | Black | ||
| Connector | Can be equipped with rifle sight standard fixture(30 standard mounting ring) | ||
| Size | 320*75*65mm(without eye mask) | ||
| Weight | <900g | ||
| Power input | Type-c Connector(Charging,data transmission) | ||
Features:
• 640*480 or 384*288 pixels are optional.
• Support functions of image WIFI transmission, built-in video and photo recording.
• HD 1280*960 resolution display.
• Working hours are longer than 7 hours.
• Standard diameter of sighting scopes, can be equipped with universal fixture, suitable for use in many rifles.
