Product Details:
|
| Model Number: | NVS06T-50 | Size: | 205x75x65mm |
|---|---|---|---|
| Weight: | 850g | Type: | Monocular |
| Magnification: | 3.5x | Effective Visual Distance: | 2m~1100m |
| Operating Voltage: | DC12V | Objective Lens Diameter: | 50mm |
| High Light: | Thermal Imaging Scope Monocular,DC12V Thermal Imaging Scope,outdoor infrared scope |
||

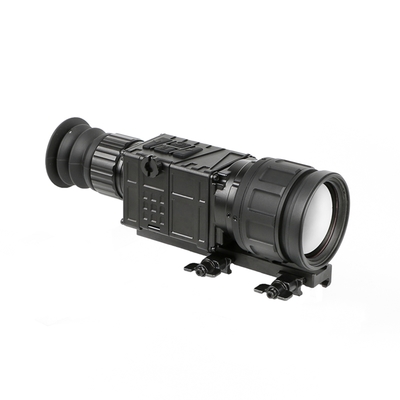

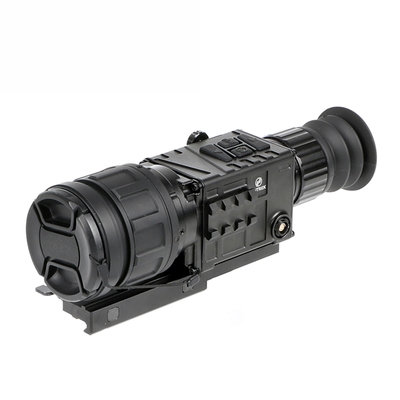

Infrared Thermal Scope Monocular For Outdoor Exploration For Hunting
Parameter:
| Optical Magnification | 3.5x |
| Electronic Zoom | 1-4X |
| System Magnification | 3.5-14x |
| Objective Aperture | 50mm |
| Detercor Type | ULIS Asi |
| Pixel | 384x288 |
| Pixel Pitch | 17μm |
| NETD | ≤40mk |
| Field of View (±5%) | 7.5°×5.5° |
| Frame Rate | 50Hz |
| Focus | Manual |
| Display | AMOLED 800×600 |
| Exit-pupil Distance | 60mm |
| Brightness/Contrast | Adjustable |
| Imaging Palette | Black Hot / White Hot |
| Battery Type | CR123A x2 |
| Working Hour | 3.5H |
| Anti-Vibration | MIL-STD-810F |
| Height of the Scope Axis Above Rail | 47.5mm |
| Detection Distance - Human | 1650m |
| Detection Distance - Vehicle | 3200m |
| Recognition Distance - Human | 600m |
| Recognition Distance - Vehicle | 1100m |
| Laser Rangfinder | 10m ~ 600m ± 2m (Optional Module) |
Features:
* Built per MIL-SPEC for use in harsh hunting/shooting conditions
* Large aperture objective for maximum thermal radiation collection
* Utilizes sensitive ULIS Asi 17μm 384x288 pixel detector
* Convenient ZERO adjustment with multiple reticle options
* Tool-free picatinny mount for easy weapon attachment
This Thermal Imaging Scopes are built per MIL-STD-810F to provide assuring reliability for use under harsh environment. Available with two models of 50mm or 75mm large aperture objective that collect maximum thermal radiation to increase detection sensitivity, the Thermal Scopes utilizes 17μm 384x288 pixel detector with sharp AMOLED display for full contrast and clarity.
Built compact and robust with tool-free picatinny mount for easy attachment to weapon for swift tactical deployment. Field-tested with 12GA ammo load, fit for both hunting and tactical mission.
