Product Details:
|
| Type: | MG-C8 Thermal Imaging Scopes | Size:: | 180x72x62mm |
|---|---|---|---|
| Weight:: | 630g | Effective Visual Distance:: | 500-4300m |
| Work Temperature:: | 0℃-45℃ | Storage Temperature:: | -20℃-60℃ |
| Frame Rate Of Thermal Images:: | 50Hz | Storage Space:: | 16G |
| Highlight: | 384×288 Infrared Thermal Scope,night vision monocular for hunting,Hunting Night Vision Monocular 50Hz |
||

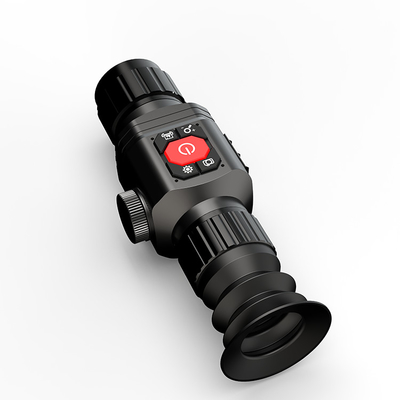

Outdoor Infrared Thermal Scope Night Vision Monocular For Hunting
| Detector type | Uncooled focal plane |
| Resolution ratio | 384×288 infrared focal plane |
| LCD resolution ratio | 1024×768 |
| Focal length | 25mm; 35mm; 54mm; 75mm |
| Eyepiece | Single-eyepiece display |
| (the refraction is adjustable and calibrated). | |
| Field angle | 14.9°x11.2°; 10.7°x8.0°; 6.9°x5.2°; 5.0°x3.7°; |
| Digital zoom | 2x; 4x |
| Wavelength coverage | 8μm to 14μm |
| Frame rate of thermal images | 50Hz |
| Color palette | Rainbow, hot metal, white hot, black hot. |
| Focal length | Adjustable |
| Battery | Built-in chargeable batteries |
| Storage space | 16G |
| Image type | BMP |
| USB | Type-C |
| Working time | 6 hours |
| Weight | 500g |
| Product size | 180×72 ×62mm (focus length 25mm) |
| Work temperature | 0℃-45℃ |
| Storage temperature | -20℃-60℃ |
| Protection level | IP66 |
| Automatic power-off time | 40min |
Features:
1. KRY803X outdoor thermal telescope, with advanced uncooled focal plane infrared detector and high quality optical lens as the core, combined with convenient and fast operating system, compact shape design, functional expansion spare parts, long service life, durable, suitable for various environments.
2. For the user to create a "clear imaging, simple operation, easy to carry" infrared thermal imaging tool.
3. cThis product has the function of taking photos, and can be connected to the computer by USB to browse the photos taken, which is convenient for many people to observe at the same time, creating possibilities for more applications.
4. Target distance (25mm) a. People: Detection distance: 1667 meters, Recognition distance: 471 meters, b. Wild boar: Detection distance: 1471 meters, Recognition distance: 367 meters, c. Vehicles: Detection distance: 2501 meters, Recognition distance: 626 meters.
5. Target distance (35mm) a. People: detection distance: 2334 meters, recognition distance: 584 meters,, b, wild boar: detection distance: 2059 meters, recognition distance: 514 meters,, c, vehicle: detection distance: 3501 meters, recognition distance: 876 meters.
6. Target distance (54mm) a. People: detection distance: 2850 meters, recognition distance: 985 meters,, b, wild boar: detection distance: 2650 meters, recognition distance: 950 meters,, c, vehicle: detection distance: 3960 meters, recognition distance: 1280 meters.
7. Target distance (75mm) a. People: detection distance: 3150 meters, recognition distance: 1390 meters,, b, wild boar: detection distance: 2860 meters, recognition distance: 1320 meters,, c, vehicle: detection distance: 4300 meters, recognition distance: 1680 meters.
MG-C8 Outdoor Thermographic Telescope device adopts advance non-cooled focal plane infrared detector and quality optical lenses as the core. With the characteristics of convenient and quick operating system, small appearance design, expansion parts with perfect function, long duration of use, it is sturdy and durable and applicable to all types of environments and provides an ideal temperature measurement tool featuring “clear imaging, precise measurement, simple operation and easy to carry”. This is the best selection for onsite detection, preventive maintenance and other application sites.
The product may be used for outdoor animal observation, search and rescue, law enforcement detection for policemen, night patrol,outdoor activities and personal security, etc. The product is provided with the photographing function. The photos may be browsed by connecting with a computer through USB to make it convenient for observation of many persons at the same time, which creates possibility for application in more occasions.
