Product Details:
|
| Type: | RH-3 Thermal Imaging Scopes | Detector Resolution: | 384x288 |
|---|---|---|---|
| Pixel Pitch: | 12μm | Frame Rate: | 50Hz |
| Display: | 1024x768 HD OLED | Apparent Magnification: | 1x |
| Electronic Zoom: | 1-4x | Weight: | <200g |
| High Light: | Handheld helmet thermal monocular,head mounted thermal monocular wearable,OEM helmet mounted thermal monocular |
||
Thermal Imaging Scopes Available For Handheld And Head Mounted
Parameter:
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
| Detector Resolution | 384x288 |
| Pixel pitch | 12 μm |
| Frame rate | 50HZ |
| Display | 1024x768 HD OLED |
| Apparent magnification | 1x |
| Field of view | 16.3° × 12.3° |
| Objective Focal Length | 16mm F/1.0 |
| Exit pupil diameter | 12mm |
| Exit pupil distance | 25mm |
| Electronic zoom | 1x-4x |
| Electronic compass | Azimuth, pitch, roll |
| Observation distance: | |
| Target (1.7mx0.5m) | Recognition distance: 370m Detection distance: 730m |
| Target (2.3mx2.3m) | Recognition distance: 510m Detection distance: 1500m |
| Type-C interface | External power supply, PAL video, serial port |
| Battery type | CR123A(3V), CR123(3.7V) ,18650(4.2V) |
| Endurance time (20℃) | CR123A(3V)>3h; CR123(3.7V)>2h; 18650(4.2V)>5h |
| Working temperature | -10~60℃ |
| Weight: | <200g |
Features:
1. 12μm thermal imaging, fast target capture, high-definition OLED display;

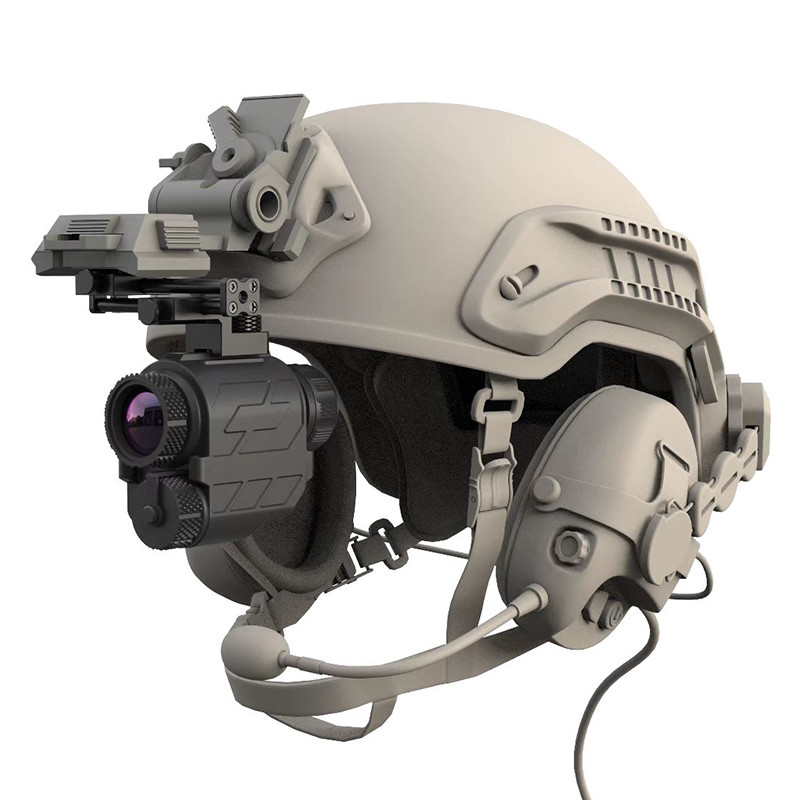

2. Handheld, helmet type, sight type, front string type, various ways of use;
3. Long battery life, low power consumption, compact structure, light weight, sturdy and durable;
Application:
Police law enforcement, fire safety, search and rescue, field rescue, outdoor search and rescue, hunting, security reconnaissance, personal security, etc.
Product description:

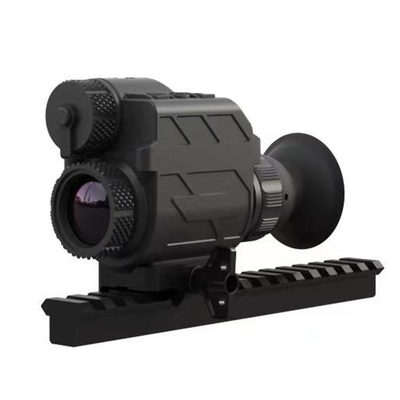

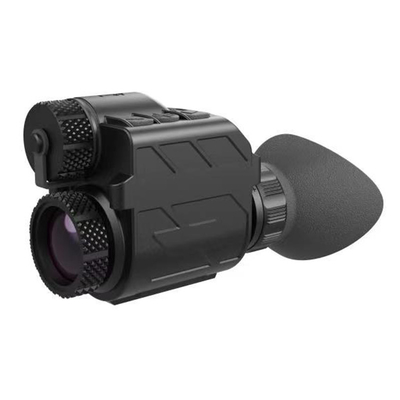

The RH-3 monocular infrared thermal imager adopts a lightweight design, low power consumption, high battery life, and multi-purpose. Using 12μm, 50HZ, 384 infrared detectors and 1024x768 high-definition OLED display, the response is sensitive, the image is clear, and there are multiple scene modes to choose from. The machine is compact, light, and durable; the RH-3 monocular thermal imager can be used in a variety of ways, including handheld, helmet, sight, and front string. Scenes.
