Product Details:
|
| Model Number: | RS3 Infrared Thermal Scope | Detector Type: | VOx |
|---|---|---|---|
| Pixel: | 384x288/640x512 | Pixel Spacing: | 12um |
| Wavelength Range: | 8～14um | NETD: | ≤35mk |
| Frame Rate: | 50Hz | Capsulation: | IP66 |
| High Light: | Outdoor RS5 Thermal Imaging Scope,Infrared Thermal Night Vision Monocular,1000m Laser Rangefinder Thermal Scope |
||

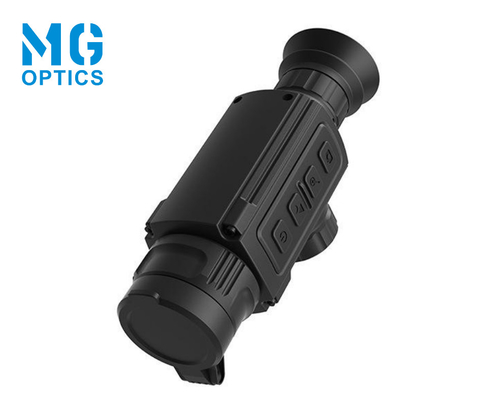

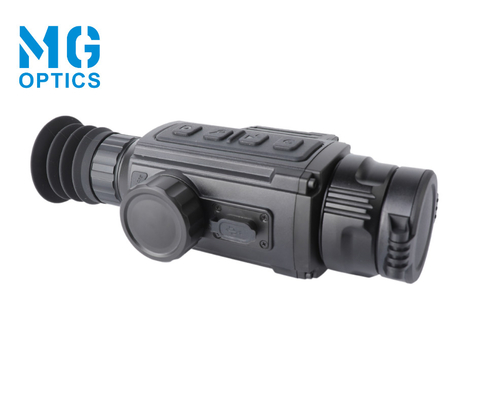

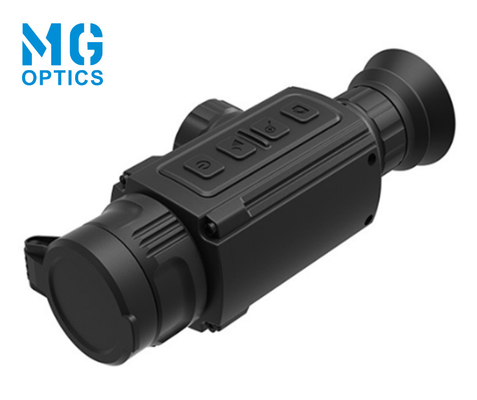

Outdoor RS5 Thermal Imaging Scope HD Infrared Thermal Night Vision Monocular With 1000m Laser Rangefinder
Parameter:
|
Model
|
RS519-384
|
RS535-384
|
RS535-640
|
RS550-640
|
|
Detector
|
||||
|
Type
|
VOx
|
|||
|
Pixel
|
384x288
|
640x512
|
||
|
Pixel spacing
|
12um
|
|||
|
Wavelength range
|
8～14um
|
|||
|
NETD
|
≤35mk
|
|||
|
|
||||
|
IR lens
|
||||
|
Focus
|
19mm/F1.0
|
35mm/F1.0
|
35mm/F1.0
|
50mm/F1.0
|
|
FOV
|
13.8°x10.4°
|
7.5°x5.7°
|
12.5°x10.0°
|
8.8°x7.0°
|
|
Focusing method
|
Manual
|
|||
|
Monitor
|
OLED,0.39", 1440x1080
|
|||
|
|
||||
|
Image display
|
||||
|
Eyepiece Parameter
|
40mm
|
|||
|
Magnification
|
1.77x~7.08x
|
3.26x~13.04x
|
1.91x~7.64x
|
2.72x~10.88x
|
|
Diopter Adjustment
|
-5D~+5D
|
|||
|
Laser rangefinder
|
can be extended (optional), ranging from 10 to 1000m
|
|||
|
Electronic compass/
motion sensor
|
support
|
|||
|
Wi-Fi
|
support
|
|||
|
|
||||
|
Image performance
|
||||
|
Frame Rate
|
50Hz
|
|||
|
Image Correction
|
auto/manual
|
|||
|
E-zoom
|
,2x.4x
|
|||
|
Hot spot tracking
|
support
|
|||
|
Cross Reticle
|
support
|
|||
|
Palette
|
White heat, black heat, iron red, red heat, forests.
|
|||
|
Image transmission
|
WiFi real-time image transmission, photography, and video.
|
|||
|
|
||||
|
Image storage
|
||||
|
Memory
|
32GB
|
|||
|
Photos
|
support
|
|||
|
Video
|
support
|
|||
|
|
||||
|
Power system
|
||||
|
Battery Type
|
Single standard 26500 rechargeable lithium battery, replaceable.
|
|||
|
Battery working time
|
>5h
|
|||
|
Charging method
|
Support online charging
|
|||
|
External power supply
|
DC5V/2A
|
|||
|
|
||||
|
Interface
|
||||
|
Data interface
|
Type-C
|
|||
|
Installation interface
|
Three standard fixing screw holes, and different optional mounting brackets
|
|||
|
|
||||
|
Physical characteristic
|
||||
|
Dimension(mm)
|
≤165*80*65mm/≤165*110*65mm (With laser)
|
≤190*80*65mm/≤190*110*65mm (With laser)
|
≤190*80*65mm/≤190*110*65mm(With laser)
|
≤200*80*65mm/≤200*110*65mm (With laser)
|
|
Weight(g)
|
≤470g/ ≤532g
(With laser)
|
≤520g/ ≤582g(With laser)
|
≤525g/ ≤587g(With laser)
|
≤570g/ ≤632(With laser
|
|
|
||||
|
Environment parameter
|
||||
|
Working temperature
|
-30℃~ +55℃(-22°F ~ 131°F)
|
|||
|
Storage temperature
|
-40℃~ +70℃
|
|||
|
Max. Recoil Power
|
800g/ms
|
|||
|
Capsulation
|
IP66
|
|||
|
|
||||
|
Detection distance
|
||||
|
Human(1.8×0.5)m
|
750m
|
1400m
|
1400m
|
1900m
|
|
Car(2.3×2.3)m
|
1800m
|
2200m
|
2200m
|
3200m
|
|
|
||||
|
Recognition distance
|
||||
|
Human(1.8×0.5)m
|
376m
|
700m
|
700m
|
1000m
|
|
Car(2.3×2.3)m
|
910m
|
1100m
|
1100m
|
1600m
|
Features:
▶ Excellent imaging performance, with 12μm@640x512 TEC metalencapsulated thermal detector for crisper images.
▶ Rugged and durable, IP66 degree of protection, high shock resistance, no fears of harsh weather.
▶Zoom in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy.

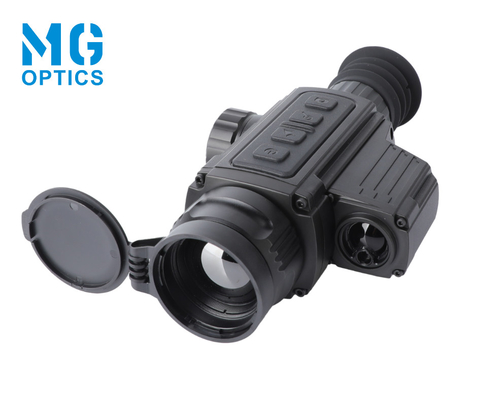

▶Built-in 1000m laser rangefinder module. Photo and video recording function.
Advantage:
▶Built-in electronic compass And motion sensor, a variety of reticle and custom memory calibration parameters can be set, WiFi real-time transmission, built-in photo and video recording
▶50fps high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation.
▶1440x1080 resolution AMOLED eyepieces, colorful and detailed images
▶Battery-mount user-friendly design, both sides can be mounted, change battery easily in darkness.
