Product Details:
|
| Model Number: | TK Pro 25 | Magnification: | 1~8x |
|---|---|---|---|
| Focus: | 25mm/F1.1 | Frame: | 50Hz |
| Digital Zoom: | 2x;4x | NETD: | <50mk |
| Size: | 192mm*65mm*71mm | Weight: | 470g |
| High Light: | 640*480@12Um IR Detector TrackIR Pro,Thermal Imaging Monocular IR Detector,640*480@12Um TrackIR Pro IR Detector |
||

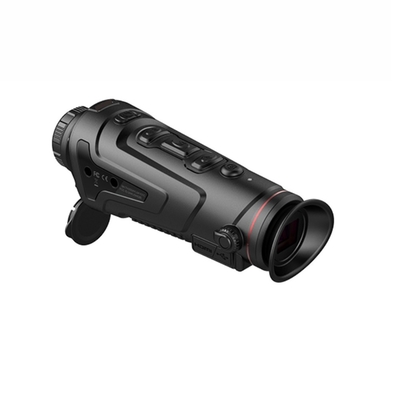

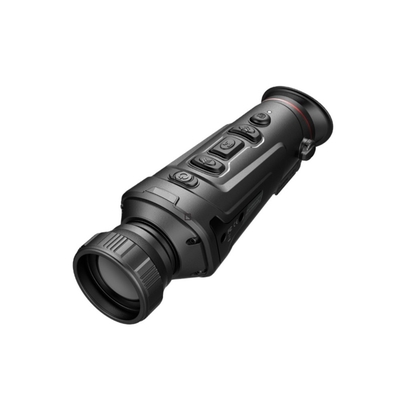

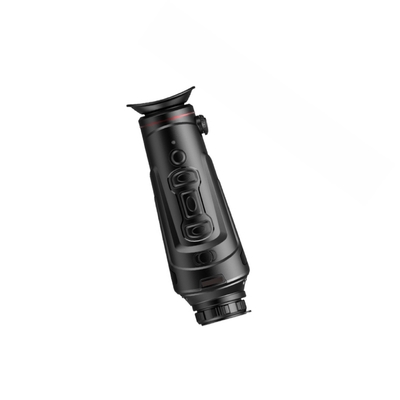

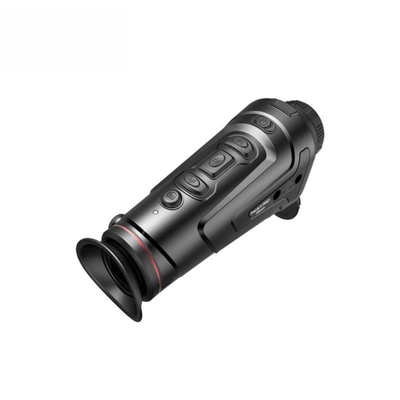

TrackIR Pro Infrared Thermal Imaging Monocular With 640*480@12Um IR Detector
Parameter:
|
Model
|
TK421 | TK431 | TK451 |
TK611
|
TK621 | TK631 |
| IR Resolution | 400×300@17μm | 640×480@12μm | ||||
| NETD | ≤50mk @ F1 25℃ | |||||
| Focal Length | 25mm/F1.1 |
35mm/F1.2
|
50mm/F1.2 | 19mm F1.0 | 25mm F1.0 | 35mm F1.0 |
| Focusing | Manual Focus | |||||
| FOV | 15.4°×11.6° | 11.1°×8.3° | 7.8°×5.8° | 22.9°×17.2° | 17.5°×13.1° | 12.5°×9.4° |
| Output Frame Frequency | 50Hz | |||||
| Optical Zoom | 1.7x | 2.3x | 3.3x | 1.1x | 1.5x | 2.0x |
| Digital Zoom | 1x—4x | 1x—8x | ||||
| Battery Operating Time | Battery continuous working time ≥ 5 hours @ 25 ℃ (only observe the state) | Battery continuous working time ≥ 4.5 hours @ 25 ℃ (only observe the state) | ||||
| USB | Type C (USB 2.0 standard) interface, chargeable and data access | |||||
| Video Interface | Micro HDMI | |||||
| WIFI |
Transmission of real-time video via WIFI for remote control, 2.4G frequency band, distance up to 15m
|
|||||
| Internal Storage | 16GB | |||||
| Working temperature |
-10℃~50℃
|
|||||
| Certifications | IP66/FCC/CE/Rohs/EAC/un38.3 | |||||
| Weight |
≤470g
|
≤485g | ≤535g | ≤490g | ≤560g | |
| Size |
192*65*71mm
|
214*65*71mm | 192*65*71mm |
214*65*71mm
|
||
Features:
* PureIR adaptive filtering algorithm for sharp images in complex environments
* Built-in laser indicator to locate the targets up to 200m
* 0.4-inch 1280x960 display for comfortable observation
Differential buttons for easy operation in total darkness
* The connected app via WiFi for remote control, live image and video transmission
* Designed to be operated under extreme environmental conditions with IP66 and 1 meter drop test
* >5 hours battery working time
* Mobile-friendly APP for Remote Control and Steaming
* User-friendly UI with quick menu, easy to operate
* Multiple Color Palettes for good vision in diverse conditions
* Support smooth zoom, built-in stadiametric rangefinder and more
