Product Details:
|
| Model Number: | S243W Thermal Imaging Monocular | Frame: | 50HZ |
|---|---|---|---|
| Focal Lens: | 15mm | Spectral Range: | 8-14μ M |
| Size: | 230*70*70mm | Weight: | 1kg |
| NETD: | <60mk@30℃ | FOV: | 24.9°*18.7°(±5%) |
| High Light: | infrared Thermal Imaging Monocular Wifi S243W,Wifi S243W Thermal Imaging Monocular,Wifi S243W Thermal Imaging Monocular Rechargeable |
||

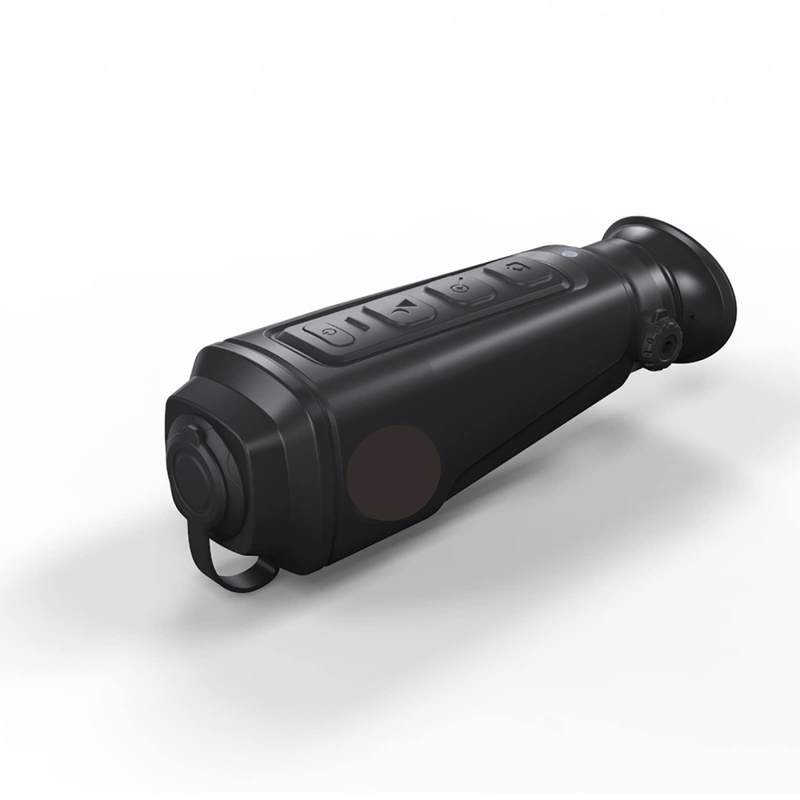

Wifi Infrared Sight Thermal Imaging Monocular Night Vision Rechargeable For Handheld
Parameter:
| Item | S242 | S243 | |
| Detector | Type | Uncooled FPA | |
| Pixel | 240×180 | 384×288 | |
| NETD | <60mk@30℃ | ||
| Image | FOV | 15.6°*11.7°(±5%) | 24.9°*18.7°(±5%) |
| Focal length | 15mm | ||
| Frame rate | 50HZ | ||
| Focus | Fixed without heating, no focusing | ||
| Digital zoom | 1.0~4.0X continuous zoom | ||
| Spectral range | 8-14μm | ||
| Image transmission | With wifi real-time image transmission | ||
| Cross hair | yes | ||
| Photographing and video | yes | ||
| Hot pot tracking | yes | ||
| Laser indicator | yes | ||
| Display | Monitor | Color screen 720*540 | |
| Polarity | Black hot, white hot, red hot and Pseudo-color | ||
| Diopter adjustment | Adjust by knob | ||
| Power | Battery | 18650 li-ion rechargeable | |
| Working time | 5 hours continuous | ||
| Charging | Support USB charging and power bank | ||
| External power | DC5V/2A(type-c) | ||
| Environment | Operation temperature | -20℃- +50℃ | |
| Storage temperature | -40℃- +60℃ | ||
| IP ratings | IP66 | ||
| Drop resistance | 1 M | ||
| Physical | Weight | <0.4Kg | |
| Dimension | <230*70*70mm | ||
| Interface | Power interface | Type-C for external charging | |
| Video output | PAL | ||
Features:

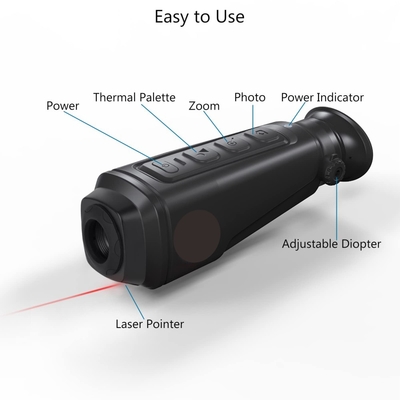

1. Easy to use - With only four buttons and an intuitive interface, the S243W thermal imager is super easy to operate with one hand and can even be mounted on a stand to free up your hands
2. Thermal Scope - 730 yards detection range and 384×288 thermal resolution, 4x digital zoom and 4 different thermal palette options for improved recognition
3. Thermal imager - 720×540 resolution display. Infrared camera with Wi-Fi hotspot and 32GB card gives you live video feed, video recording and snapshot capture
4. Rechargeable - Built-in lithium-ion battery, support 5 hours of work. And can charge thermal goggles via USB-C via adapter or power bank
5. Reliable Vision - Handheld thermal monoculars display people and animals in 100% dim or harsh light by infrared. Perfect for outdoor, exploration, surveillance, rescue, security, hunting, hiking and more.
