Product Details:
|
| Type: | TD210 Handheld Thermal Imaging Monocular | Detector Type: | 256×192@12μm, VOx |
|---|---|---|---|
| Spectral: | 8μm ~ 14μm | NETD: | ≤50mk |
| FOV: | 17.5°×13.1° | Frame Rate: | 25Hz |
| Working Time: | ≥8h | Encapsulation: | IP66 ，1-meter Drop Test |
| High Light: | TD210 Handheld Thermal Imaging Scope,TD210 thermal Monocular for Hunting,IP66 thermal night vision camera |
||

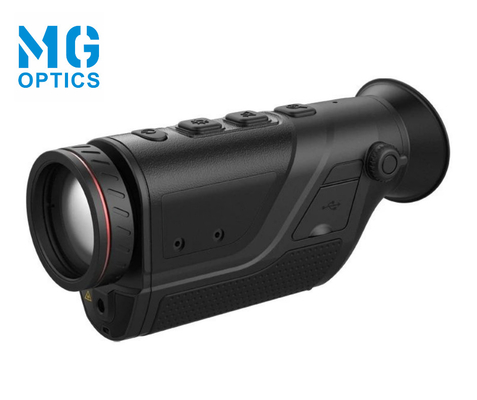

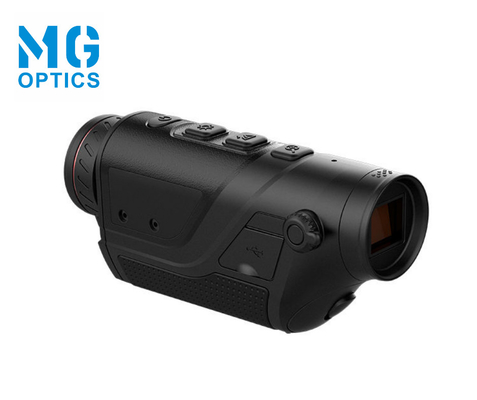

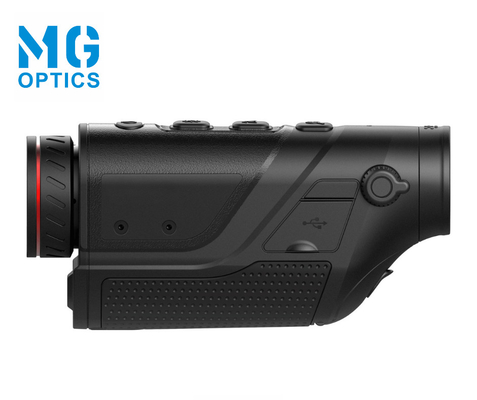

TD210 Handheld Thermal Imaging Scope For Hunting Monocular Infrared Thermal Vision Digital Camera
Specifications:
| Model | TD210 |
| Detector | |
| Detector Type | 256×192@12μm, VOx |
| Spectral | 8μm ~ 14μm |
| NETD | ≤50mk |
| Lens | |
| Focal Length | 10mm/F1.0 |
| FOV | 17.5°×13.1° |
| Focusing | Electric Focusing |
| Display | |
| Screen | Full-Color LCOS Screen,1280×960 |
| Eyepiece | Exit pupil distance 17 mm, Adjustable diopter -4~ ＋2 |
| Magnification | 1.8X~3.6X |
| Imaging | |
| Frame Rate | 25Hz |
| Digital Zoom | 1X~2X |
| Color Palettes | White Hot, Black Hot, Red hot, Blue Hot, Red Hot |
| Scenes Modes | Enhanced, Highlight, Natural |
| Picture-in-picture | Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right |
| Functions | |
| Hotspot Tracking | √ |
| Laser Rangefinder | Red Yellow Green |
| WIFI/APP | Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission |
| Compensation Modes | Shutter Compensation |
| Power Supply | |
| Battery Type | Removable Standard 18650 Li-ion battery x1 |
| Working Time | ≥8h |
| Interface | |
| USB/Video Output | TYPE C(USB 2.0 Standard)Interface for charging, data transmission and simulation video output |
| Laser Designating | Yes, Distance within 200m |
| Tripod Interface | Inch 1/4-20 |
| Others | Picatinny Interface/ Bluetooth/ WIFI |
| Environmental Characteristics | |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -30°C ~ 60°C |
| Encapsulation | IP66 ,1-meter drop test |
| Certificate | UN38.3 (Battery certificate), RoHS, CE, FCC, EAC |
| Weight & Dimensions | |
| Weight | 360g |
| Dimensions | 143mm×45mm×73mm |
| Package Contents | |
| Standard | Type-C To USB + Analog video cable, 18650 Battery x1, Charger, Lens Cover Wrist strap, Portable package, Quick Start Guide |
| Optional | Picatinny rail, Remote Control |
Introduce:
TD210 follow the design of traditional optical equipment. It is a small, lightweight , simple operation, and a wide range of application scenarios for infrared handheld thermal imaging monocular. TD Thermal scope has clear imaging and comfortable observation, suitable for medium distance and short-distance observation, It is an ideal equipment for outdoor night vision.
Features and Benefits:
▲ Boot up in 2 seconds and ready to use
▲ High-sensitivity self-developed infrared detector to accurately detect targets
▲ Built-in laser rangefinder to locate the target easily
▲ 1280x960 High Resolution LCOS Display Screen to provide a comfortable observation
▲ PIP mode to Highlight Target Clearly
▲ Connect App via WIFI to share anytime
▲ Support 8 hours super long operation time
▲ IP66 Encapsulation, Rugged and Durable
Application:
▲ Outdoor
▲ Wild Adventure
▲ Law Enforcement
▲ Search & Rescue
▲ Personal Security
▲ Livestock Breeding
